M/T Clutch System: Flywheel: Removal

  1. Remove the transmission assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT)>Manual Transmission Assembly>REMOVAL .
  2. Remove the clutch cover and clutch disc. Ref. to CLUTCH SYSTEM>Clutch Disc and Cover>REMOVAL .
  3. Attach the ST.

    ST 498497100 CRANKSHAFT STOPPER

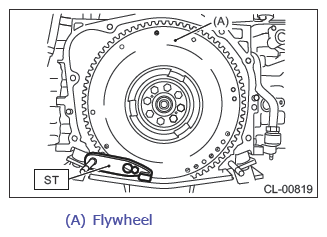

    Fig 1: Installing Special Tool With Flywheel
    G11268057Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the flywheel and crankshaft position sensor plate.
  5. Drive out the pilot bearing from the flywheel.
