Differential Case Assembly

Remove the taper roller bearing using the ST.
ST 498077000 REMOVER

Fig 1: Removing Differential Case Assembly Taper Roller Bearing Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.
Remove the hypoid driven gear mounting bolt using the ST.
ST 18270KA020 SOCKET (E20)

Fig 2: Identifying Hypoid Driven Gear Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the differential case (LH).

Fig 3: Identifying Differential Case (LH)
Courtesy of SUBARU OF AMERICA, INC.
Remove the differential bevel gear and washer from differential case.

Fig 4: Identifying Differential Case Differential Bevel Gear And Washer
Courtesy of SUBARU OF AMERICA, INC.
Remove the straight pin.

Fig 5: Locating Differential Case Straight Pins
Courtesy of SUBARU OF AMERICA, INC.

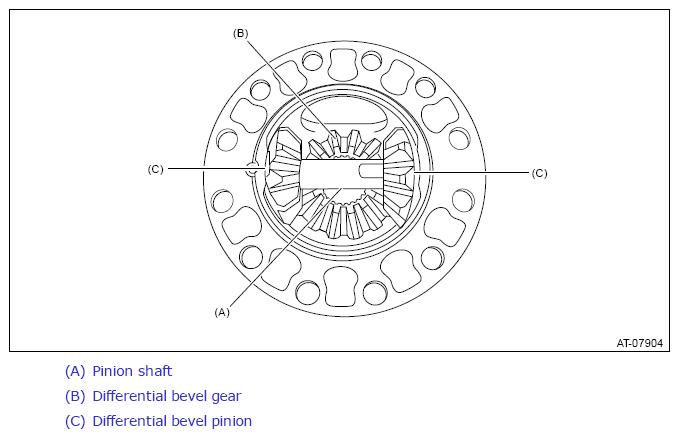

Remove the pinion shaft, then remove the differential bevel gear, washer and differential bevel pinion.

Fig 6: Identifying Pinion Shaft, Differential Bevel Gear And Differential Bevel Pinion

Courtesy of SUBARU OF AMERICA, INC.
