RH Side

  1. Install the knock sensor to the cylinder block.
    NOTE: The knock sensor should be installed so that the center of the connector is positioned at a 32.5-47.5° angle relative to the rear of engine.

    Tightening torque:

    24 N.m (2.4 kg-fm, 17.7 ft-lb)

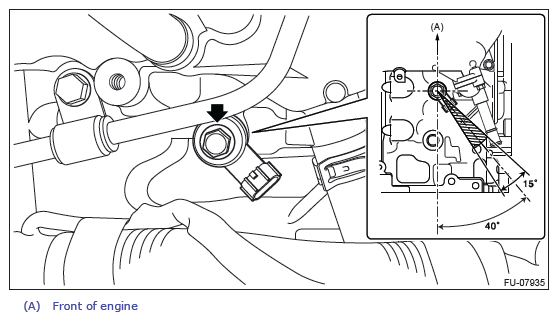

    Fig 1: Locating Sensor Nut
    G11264999Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the connector to the knock sensor.
    Fig 2: Locating Knock Sensor Connector
    G09479755Courtesy of SUBARU OF AMERICA, INC.
  3. Install the fuel pipe insulator No. 3. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Insulator>INSTALLATION>FUEL PIPE INSULATOR NO. 3 .
  4. Install the intake manifold. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Intake Manifold>INSTALLATION .
  5. Connect the battery ground terminal.
  6. Install the collector cover.
