Remote Control Back Rest Switch

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the rear quarter lower trim. Ref. to EXTERIOR/INTERIOR TRIM>Rear Quarter Trim>REMOVAL .
  3. Remove the remote control back rest switch from the rear quarter lower trim.

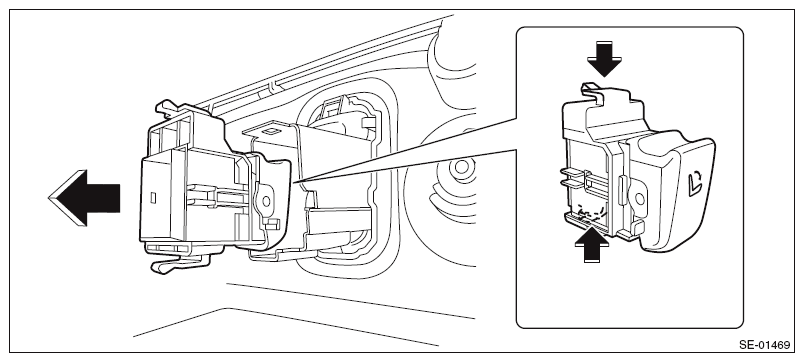

Fig 1: Removing Remote Control Back Rest Switch From Rear Quarter Lower Trim
G09484619Courtesy of SUBARU OF AMERICA, INC.
