Drive Cycle P

DTC	Item	Condition
P04F0	EVAP SYSTEM HIGH PRESSURE PURGE LINE (CPC2) PERFORMANCE	Remaining fuel level 20 L or more

Diagnostic procedure:

WARNING: When performing drive cycle P on a public road, pay sufficient attention to the traffic condition and give the highest priority to safe driving.

Drive according to the drive pattern described below.

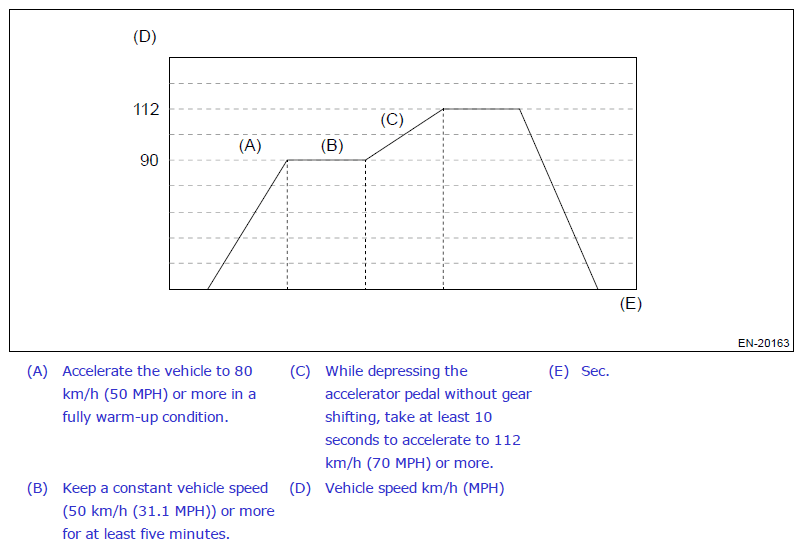

Fig 1: Drive Cycle Pattern (P)
Courtesy of SUBARU OF AMERICA, INC.
Park the vehicle on a safe place.
NOTE: Driving method while vehicle is driven to a stop at safe place is not restricted.
With the vehicle idling, read the temporary diagnostic code of DTC using Subaru Select Monitor or general scan tool.
NOTE:
- Refer to "Read Diagnostic Trouble Code (DTC)" for detailed operation procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>Read Diagnostic Trouble Code (DTC) .
- In the step 3), if the DTC is not displayed on the Subaru Select Monitor or general scan tool display screen, the trouble is resolved.
