Manifold Absolute Pressure and Intake Air Temperature Sensor: Removal

1. Remove the collector cover.
   1. Remove the clip (A).
   2. Hold the shaded area (B) by hand and carefully pull the RH side (C) upward.
   3. Hold the shaded area (D) by hand and carefully pull the LH side (E) upward.
   Fig 1: Pulling Collector Cover (RH) And (LH) Side Upward

   Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the ground cable from battery.

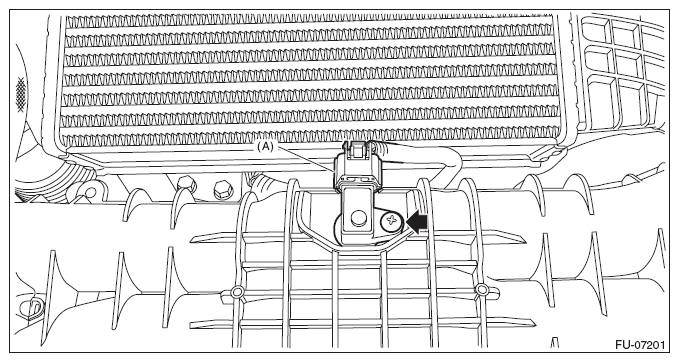

3. Disconnect the connector (A) from the manifold absolute pressure & intake air temperature sensor, and remove the manifold absolute pressure & intake air temperature sensor from the intake manifold.

Fig 2: Locating Intake Air Temperature Sensor Screw

Courtesy of SUBARU OF AMERICA, INC.
