Exhaust Side

  1. Disconnect the ground cable from battery.
  2. Remove the under cover. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>REMOVAL .
  3. Disconnect the connector (A) from the camshaft position sensor, and remove the camshaft position sensor from the chain cover.
Fig 1: Locating Camshaft Position Sensor Bolt Exhaust Side (RH)
G09479738Courtesy of SUBARU OF AMERICA, INC.

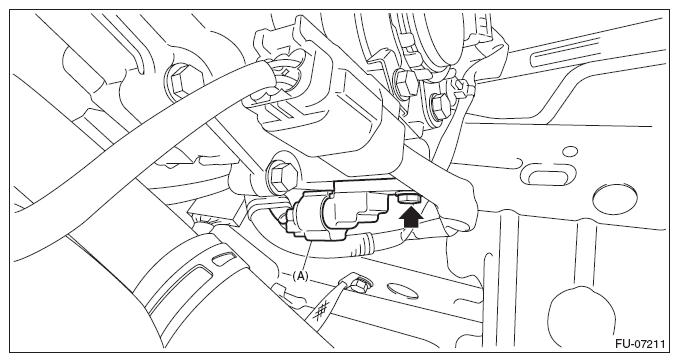

Fig 2: Locating Camshaft Position Sensor Bolt Exhaust Side (LH)
G09479739Courtesy of SUBARU OF AMERICA, INC.
