Center Differential: Disassembly

Remove the ball bearing using ST.

NOTE: Center differential is a non-disassembled part which should not be disassembled.

ST 498077300 CENTER DIFFERENTIAL BEARING REMOVER

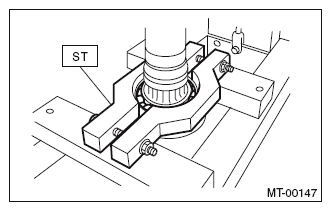

Fig 1: Removing Ball Bearing Using Center Differential Bearing Remover (498077300)

Courtesy of SUBARU OF AMERICA, INC.
