Transmission Case: Disassembly

Remove the oil stopper plate.

Fig 1: Locating Oil Stopper Plate Bolts
Courtesy of SUBARU OF AMERICA, INC.

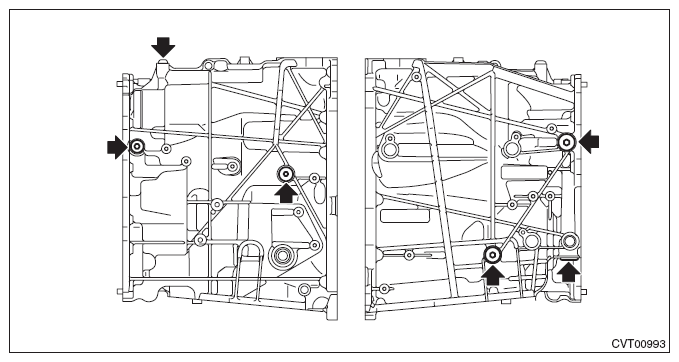

Remove all plugs from the transmission case.

Fig 2: Locating Transmission Case Plugs
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil seal using a screwdriver wrapped with cloth etc.

Fig 3: Removing Oil Seal Using Screwdriver
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the ball bearing of the secondary pulley.

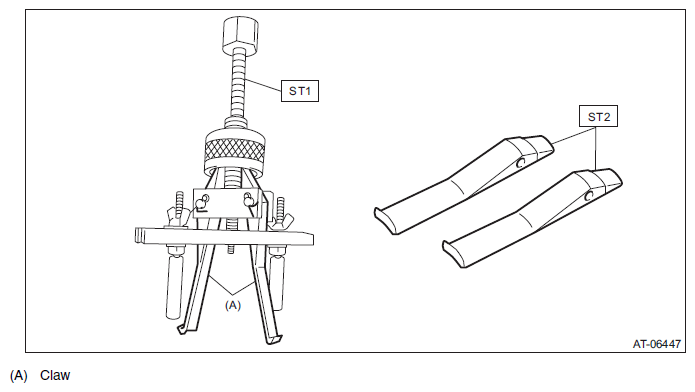

1. Remove the claw of ST1, and attach the claw of ST2.
  ST1 398527700 PULLER ASSY

  ST2 18760AA000 CLAW

  Fig 4: Secondary Pulley Ball Bearing Removal Tool
  Courtesy of SUBARU OF AMERICA, INC.

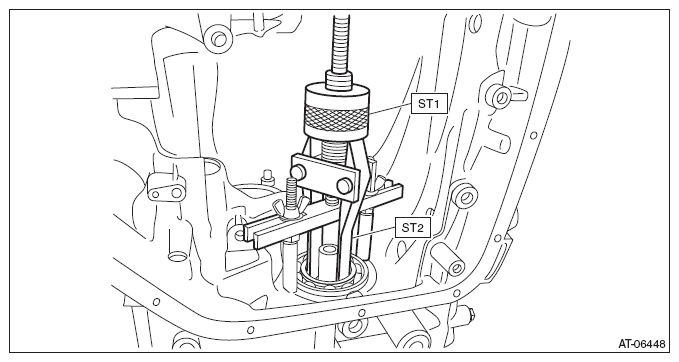

2. Using the ST, remove the ball bearing of the secondary pulley.
  ST1 398527700 PULLER ASSY

  ST2 18760AA000 CLAW

  Fig 5: Removing Secondary Pulley Ball Bearing Using ST
  Courtesy of SUBARU OF AMERICA, INC.
Remove the oil guide.

Fig 6: Transmission Case Oil Guide
Courtesy of SUBARU OF AMERICA, INC.

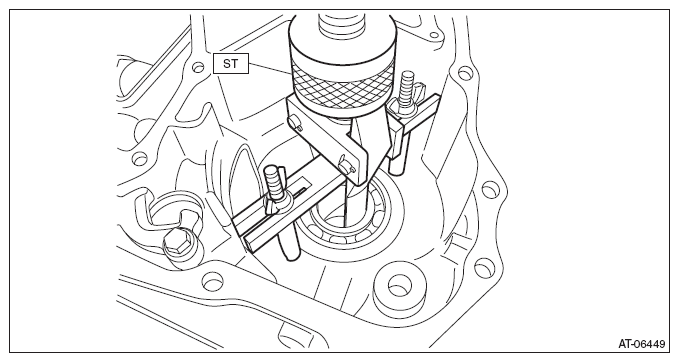

Remove the ball bearing from reduction driven gear using ST.
ST 398527700 PULLER ASSY

Fig 7: Removing Ball Bearing From Reduction Driven Gear Using ST
Courtesy of SUBARU OF AMERICA, INC.
Remove the CVTF filter cover and gasket.

Fig 8: CVTF Filter Cover And Gasket
Courtesy of SUBARU OF AMERICA, INC.
Remove the CVTF filter.

Fig 9: Removing CVTF Filter

Courtesy of SUBARU OF AMERICA, INC.
