Torque Converter Assembly: Removal

  1. Remove the transmission assembly from the vehicle. Ref. to REMOVAL , Automatic Transmission Assembly.
  2. Pull out the torque converter assembly horizontally.
    CAUTION: Do not scratch the inside of engaging parts.

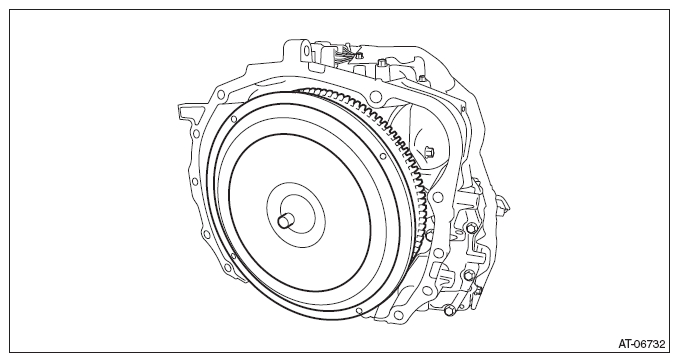

    Fig 1: Torque Converter Assembly
    G08317887Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the O-ring from the input shaft.
