MT Gear Shift Lever: Installation

Insert the gear shift lever from the room side.
NOTE: Insert the rod and the stay, and then temporarily set them onto the transmission mount.

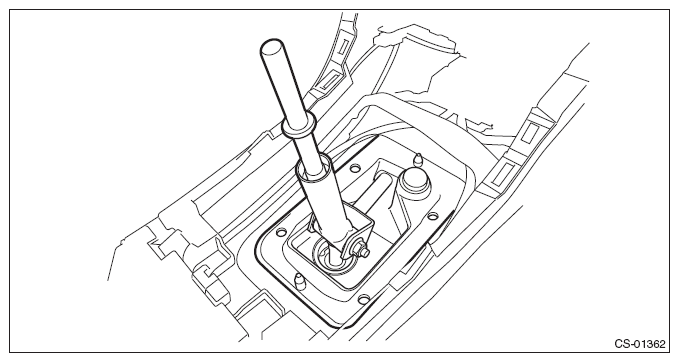

Fig 1: Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Install the joint to the transmission and secure with a spring pin.

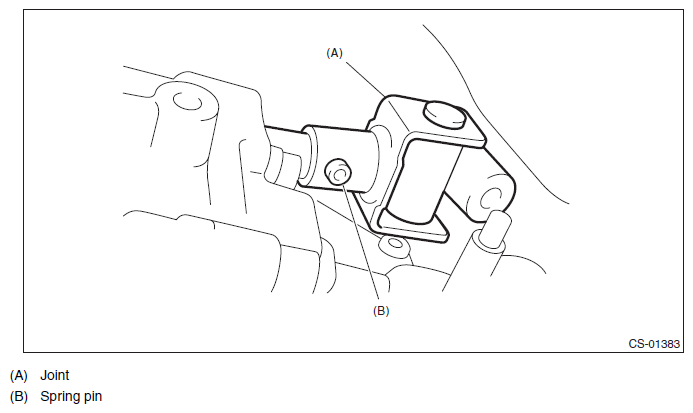

Fig 2: Joint And Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Mount the cushion rubber on the vehicle body.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

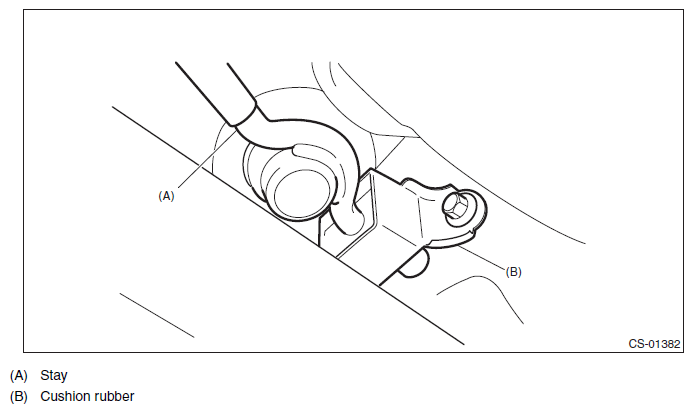

Fig 3: Stay And Cushion Rubber
Courtesy of SUBARU OF AMERICA, INC.
Connect the rod to the joint.
NOTE: Use a new self-locking nut.

Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

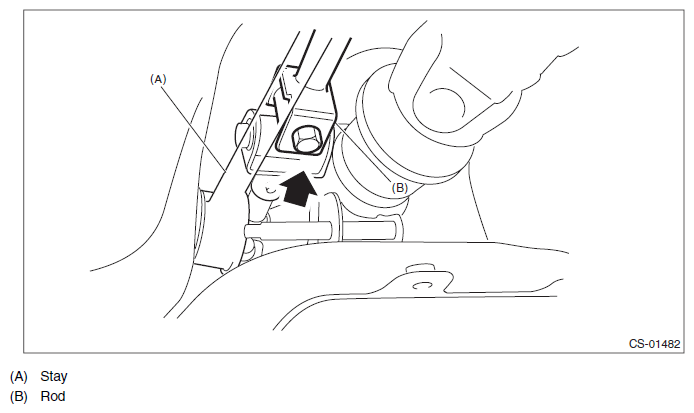

Fig 4: Locating Stay And Rod
Courtesy of SUBARU OF AMERICA, INC.
Connect the stay to the shift bracket, and tighten the self-locking nut.
NOTE: Use a new self-locking nut.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

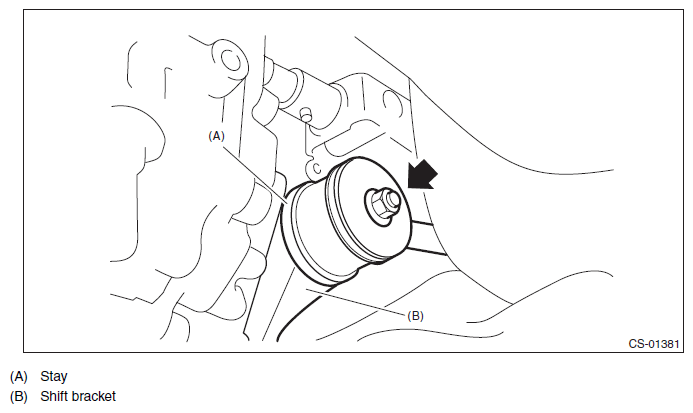

Fig 5: Locating Shift Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 6: Center Exhaust Cover Location
Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust pipe. Ref. to INSTALLATION , Center Exhaust Pipe.
Lower the vehicle.
Install the plate COMPL to the body.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
1. Set the plate COMPL to the vehicle.
2. Temporarily tighten the bolt (A).
3. Tighten the bolt (B).
4. Tighten the bolt (A).
5. Tighten the bolts (C) and (D).
Fig 7: Locating Plate Compl Bolts Location
Courtesy of SUBARU OF AMERICA, INC.
Install the harness clamp to the plate.
Install the boot and insulator assembly, and secure with a clamp.

Fig 8: Boot And Insulator Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the panel center LWR LH and RH. Ref. to INSTALLATION , Console Box.
Install the cover - shift lever, and install the gear shift knob.
Install the console box. Ref. to INSTALLATION , Console Box.
Make sure the gears can be shifted accurately into each gear.
Connect the battery ground terminal.
