Preparation for Overhaul: Procedure

Clean the transmission exterior.
Remove the torque converter assembly. Ref. to TORQUE CONVERTER ASSEMBLY .
Attach the ST on the transmission.
ST 18632AA000 STAND ASSY

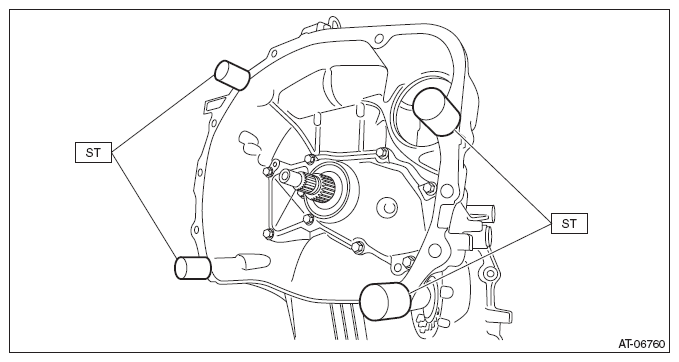

Fig 1: Attaching ST On Transmission
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission case cover on the transmission upper side.
NOTE: After the transmission case cover (large) is installed, insert the transmission case cover (small) between the transmission case cover (large) and the transmission to install.

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

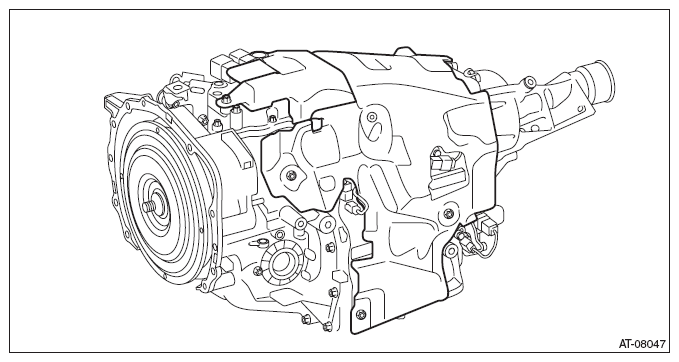

Fig 2: Transmission Case Cover Location
Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Placing Transmission Assembly On End
Courtesy of SUBARU OF AMERICA, INC.
Place the transmission assembly on end.
When completely overhauling the transmission, refill approx. 10 L (2.6 US qt, 8.8 Imp qt) of CVTF through the transmission right side plug, and install the plug. Finally, install the transmission case cover.
CAUTION: Always use specified CVTF. Using other fluid will cause malfunction. Ref. to HYDRAULIC CONTROL AND LUBRICATION , SPECIFICATION, General Description.

NOTE: Use a new gasket.

Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

Fig 4: Locating Transmission Right Side Plug
Courtesy of SUBARU OF AMERICA, INC.
