Transmission Control Module (TCM) I/O Signal: Waveform: Solenoid

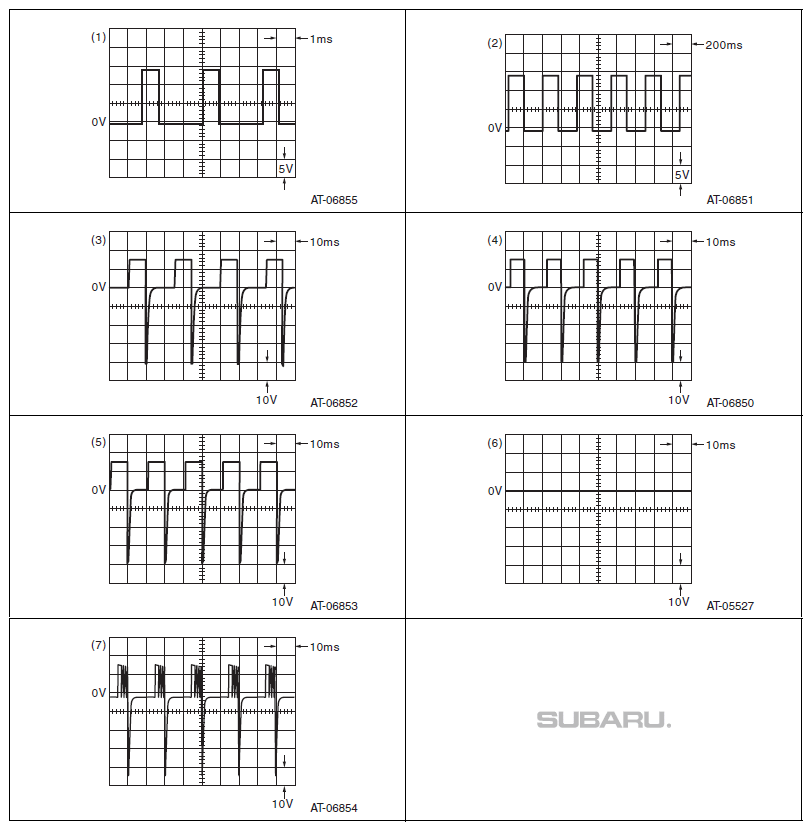

Fig 1: Solenoid Voltage Signal Waveform

G11568743

Courtesy of SUBARU OF AMERICA, INC.
