Subaru
>>
2017
>>
Crosstrek Limited
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
CVT Transaxle (Diagnostics)
>>
Electrical Component Location
>>
Location
>>
Control Module
Control Module

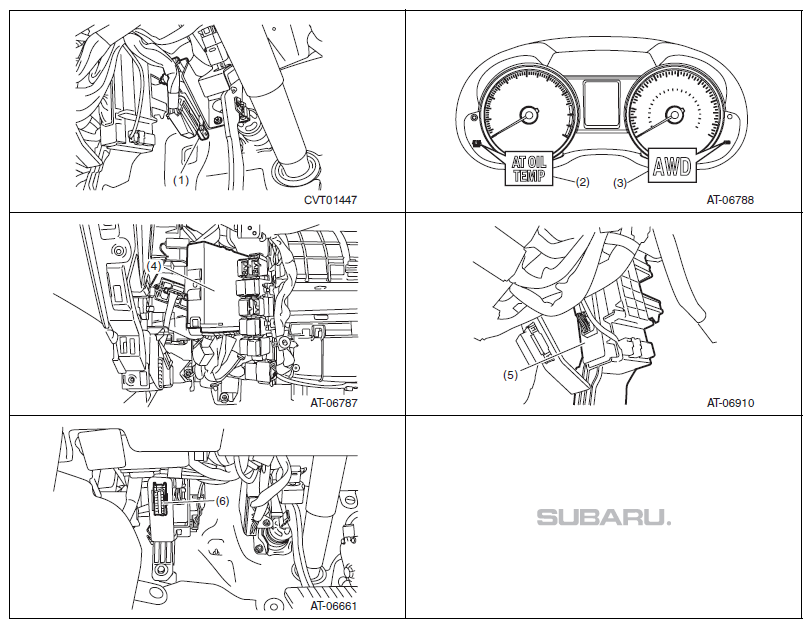

Fig 1: Control Module Electrical Component Location (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

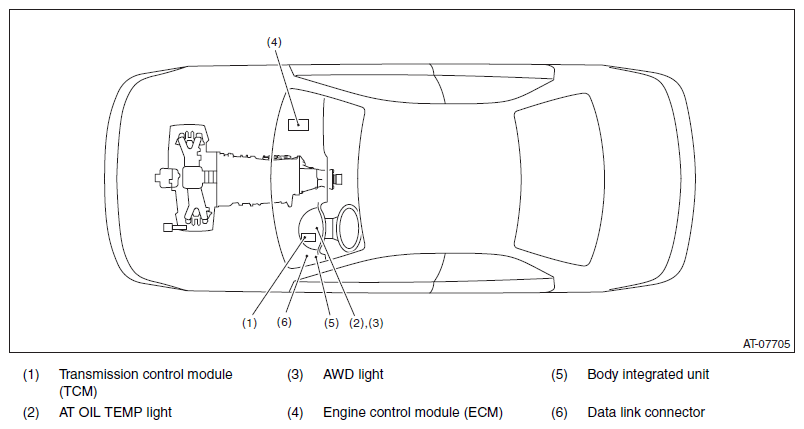

Fig 2: Control Module Electrical Component Location (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
