Master Cylinder: Installation

Install the master cylinder to the body, and connect the clutch pipe and the tank hose.
Tightening torque:

T1: 15 N.m (1.5 kgf-m, 11.1 ft-lb)

T2: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

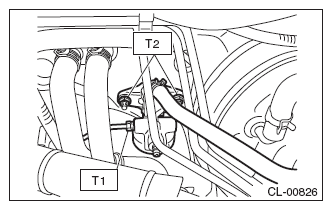

Fig 1: Master Cylinder Bolts (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.
Connect the push rod of the master cylinder, and install the clevis pin and snap pin.
CAUTION: Always use a new clevis pin.

NOTE: Apply grease to the clevis pin.

Fig 2: Applying Grease To Clevis Pin
Courtesy of SUBARU OF AMERICA, INC.
Install the knee airbag module. Ref. to INSTALLATION , Knee Airbag Module.
Fill the recommended brake fluid. Ref. to CLUTCH FLUID .
After bleeding air from the clutch system, ensure that the clutch operates properly. Ref. to CLUTCH FLUID AIR BLEEDING .
Install the cover assembly - instrument panel LWR driver. Ref. to INSTALLATION , Instrument Panel Lower Cover.
Install the air intake boot. Ref. to INSTALLATION , Air Intake Boot.
Connect the battery ground terminal.
