Master Cylinder

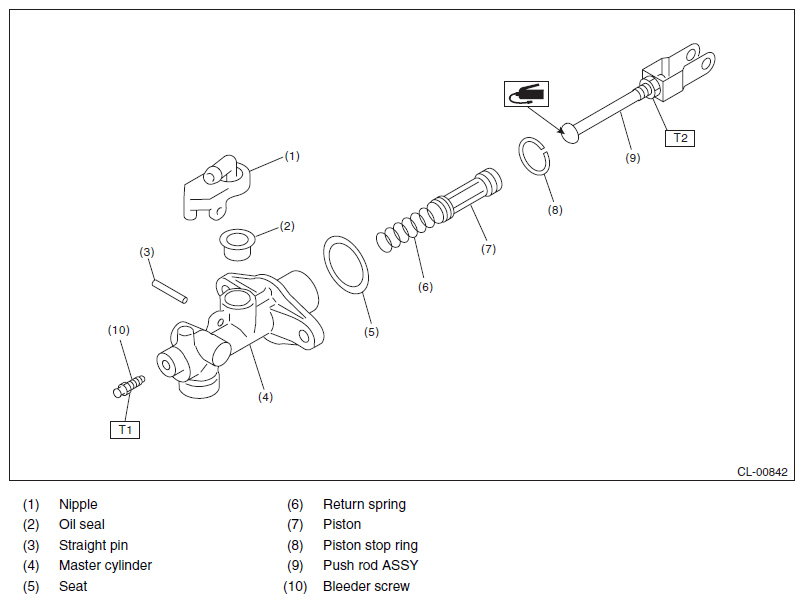

Fig 1: Exploded View Of Master Cylinder (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.8 (0.8, 5.8)

T2: 10 (1.0, 7.4)
