M/T Clutch System: Flywheel: Removal

  1. Remove the transmission assembly. Ref. to REMOVAL , Manual Transmission Assembly.
  2. Remove the clutch cover and clutch disc. Ref. to REMOVAL , Clutch Disc and Cover.
  3. Attach the ST.

    ST 498497100 CRANKSHAFT STOPPER

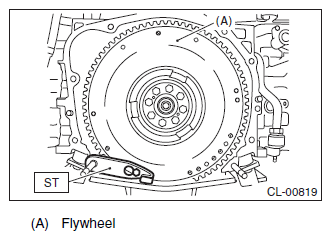

    Fig 1: Attaching Crankshaft Stopper (498497100)
    G11569091Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the flywheel and crankshaft position sensor plate.
  5. Drive out the pilot bearing from flywheel.
