Universal Joint: Removal

Adjust the tilt position of the column assembly - steering to the lowest position and lock the tilt lever.

Fig 1: Adjusting Tilt Position Of Column Assembly - Steering To Lowest Position
Courtesy of SUBARU OF AMERICA, INC.
Remove the universal joint assembly - steering.
1. Place alignment marks on the universal joint assembly - steering.
  NOTE:
  Place alignment marks on the following positions.
  - Between the column assembly - steering and the universal joint assembly - steering
  - Between the steering gearbox assembly and the universal joint assembly - steering
2. Remove the bolt, and remove the universal joint assembly - steering.
Fig 2: Locating Universal Joint Assembly - Steering Bolt
Courtesy of SUBARU OF AMERICA, INC.

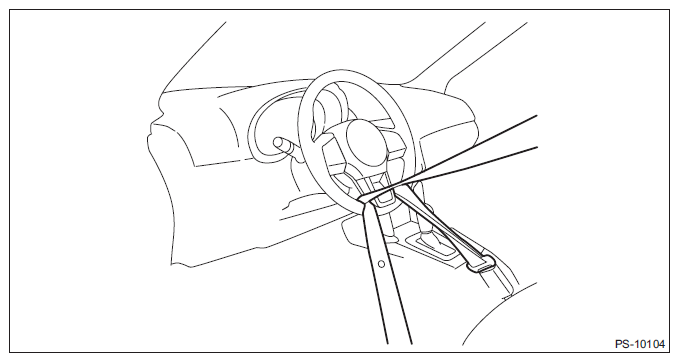

Prevent the steering wheel from turning using the seat belt.

Fig 3: Preventing Steering Wheel From Turning Using Seat Belt

Courtesy of SUBARU OF AMERICA, INC.
