Rear Seat Belt

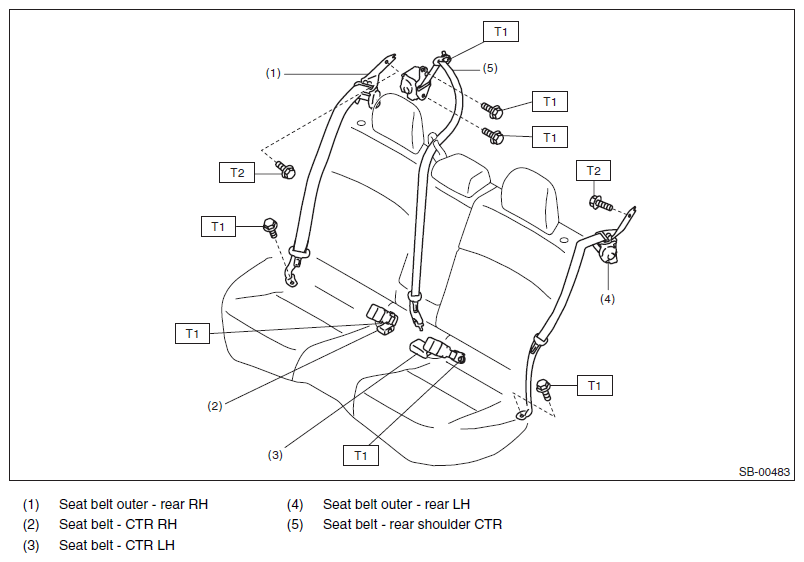

Fig 1: Rear Seat Belt Component Location

G11571007

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 30 (3.06, 22.1)

T2: 53 (5.4, 39.1)
