Starting System & Charging System (H4DO): Starter: Installation

Install in the reverse order of removal.

NOTE:

For CVT model, a nut is used at (a).
Tighten the starter and cable stay (b) together using the upper bolt securing the starter.

Tightening torque:

T1: 14 N.m (1.4 kgf-m, 10.3 ft-lb)

T2: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

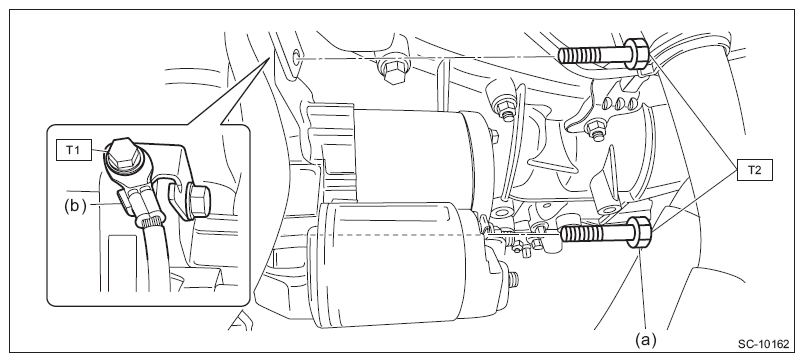

Fig 1: Installing Starter And Cable Stay

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

Fig 2: Locating Starter Nut

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

3 N.m (0.3 kgf-m, 2.2 ft-lb)

Fig 3: Locating Clamps

Courtesy of SUBARU OF AMERICA, INC.
