Steering Lock Control Module: Removal

CAUTION:

• Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to CAUTION , General Description.
• Do not allow harness and connectors to interfere or get tangled up with other parts.
• If the steering wheel and steering angle sensor (steering roll connector) are removed, perform "VSC(VDC) Centering Mode" of the VDC. Ref. to ADJUSTMENT , VDC Control Module and Hydraulic Control Unit (VDCCM & H/U).

1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to BATTERY .
2. Remove the cover assembly - instrument panel LWR driver. Ref. to REMOVAL , Instrument Panel Lower Cover.
3. Remove the knee airbag module. Ref. to REMOVAL , Knee Airbag Module.
4. Remove the universal joint assembly - steering. Ref. to REMOVAL , Universal Joint.
5. Remove the column assembly - steering. Ref. to REMOVAL , Steering Column.
6. Remove the steering lock Control Module.
   1. Secure the column assembly - steering in a vise.
   2. Use the reverse tap or drill to remove the set bolt and remove the steering lock Control Module.

CAUTION: Do not apply any impact to the set bolt by a chisel or punch.

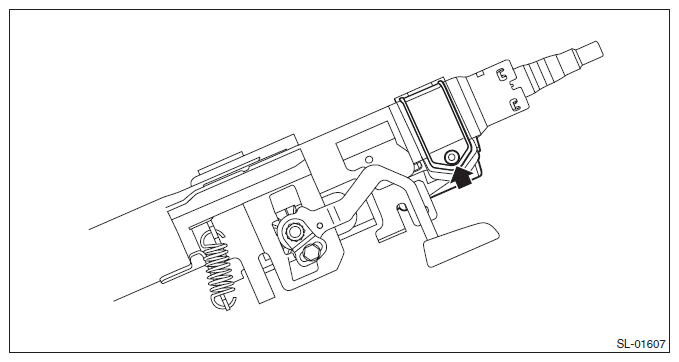

Fig 1: Locating Steering Lock Control Module Set Bolt

Courtesy of SUBARU OF AMERICA, INC.
