Keyless Access Control Module: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to CAUTION , General Description.

1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to BATTERY .
2. Remove the cover assembly - instrument panel LWR driver. Ref. to REMOVAL , Instrument Panel Lower Cover.
3. Remove the knee airbag module. Ref. to REMOVAL , Knee Airbag Module.
4. Release the lock and remove the fuse holder.

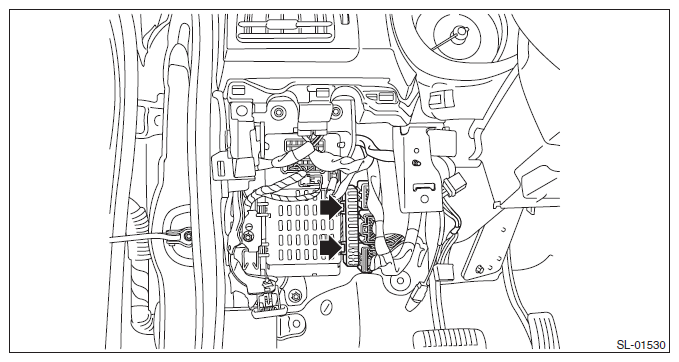

   Fig 1: Locating Fuse Holder Lock

   Courtesy of SUBARU OF AMERICA, INC.
5. Remove the relay & fuse box.
   1. Disconnect the connector.
   2. Remove the bolts and nuts, and remove the relay & fuse box.

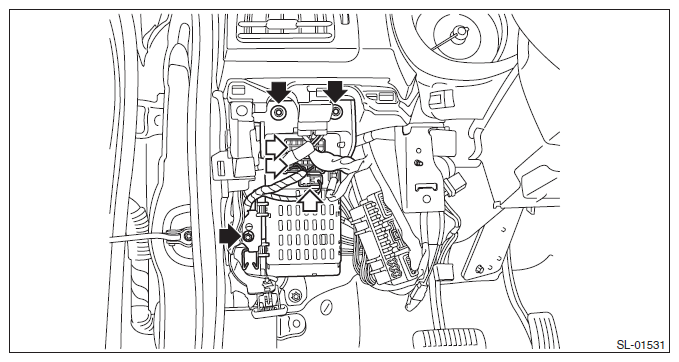

   Fig 2: Locating Relay & Fuse Box Connector, Bolts And Nuts

   Courtesy of SUBARU OF AMERICA, INC.
6. Remove the keyless access Control Module.

CAUTION: Be careful to keep water and other foreign materials away from body integrated unit terminals.

1. Disconnect the connector.

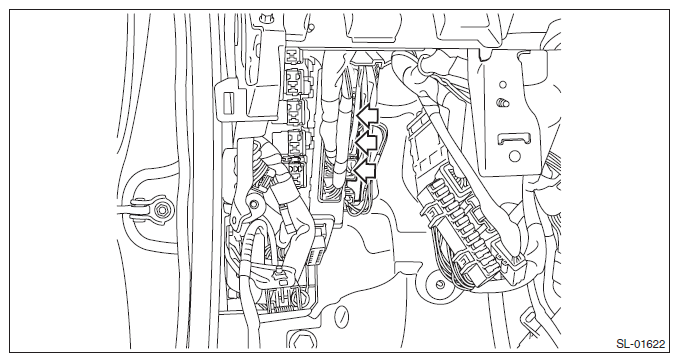

   Fig 3: Locating Keyless Access Control Module Connector

   Courtesy of SUBARU OF AMERICA, INC.
2. Release the claws, and pull out the keyless access Control Module from the bracket.

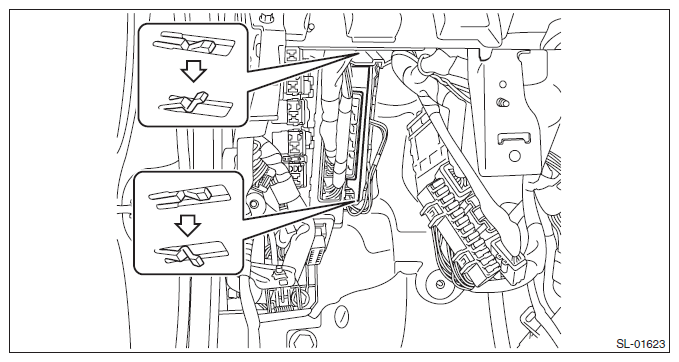

Fig 4: Locating Keyless Access Control Module Claws

Courtesy of SUBARU OF AMERICA, INC.
