Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Entertainment System
>>
Navigation System
>>
Inspection
>>
System Block Diagram
System Block Diagram

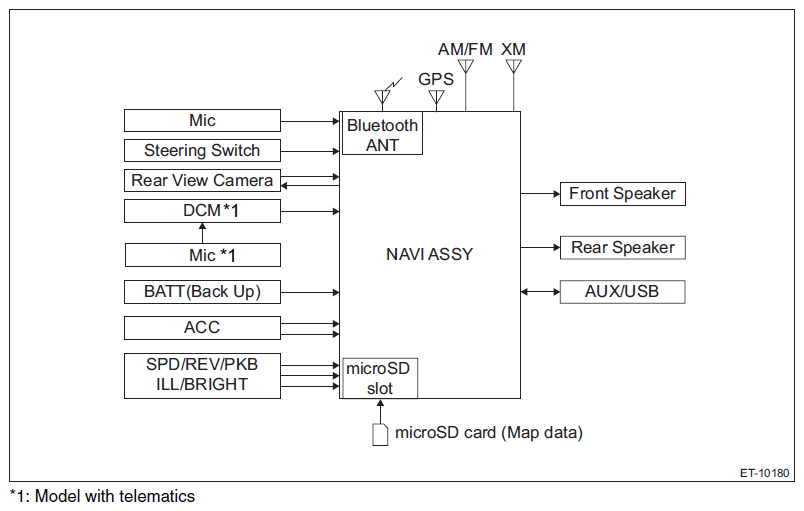

Fig 1: Radio Assy System Block Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
