External Connection Terminal: Removal

1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to BATTERY .
2. Remove the console box assembly. Ref. to REMOVAL , Console Box.
3. While pressing the claw, press it in from the rear to remove the unit assembly - AUX.

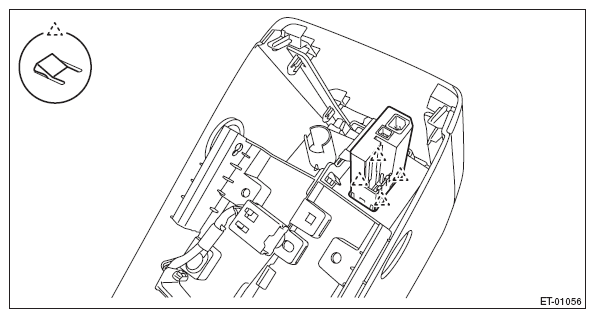

Fig 1: AUX Unit Assembly Claws

Courtesy of SUBARU OF AMERICA, INC.
