Circuit figure

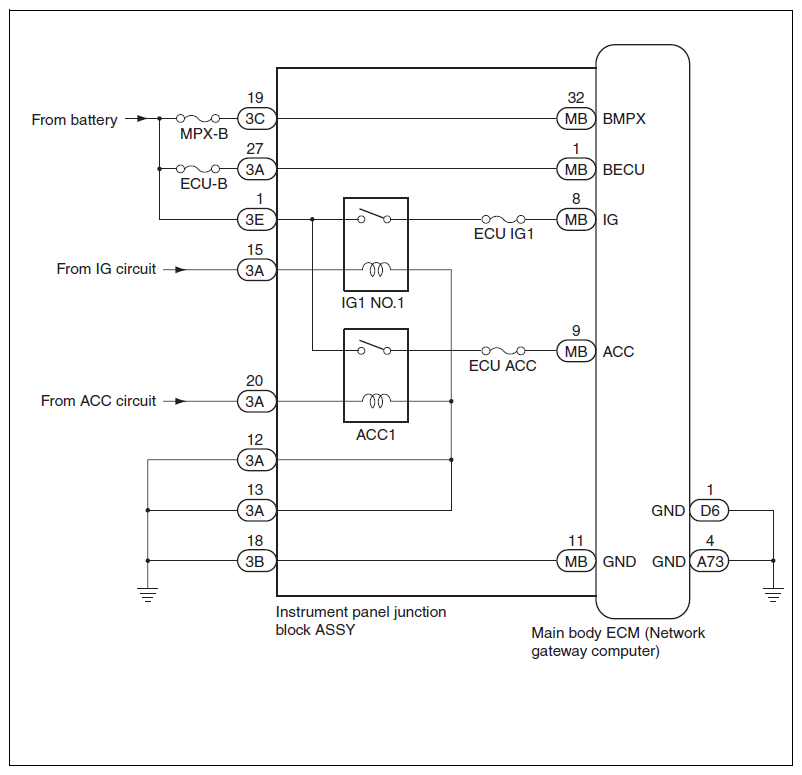

Fig 1: Instrument Panel Junction Block ASSY - Circuit Diagram

G11261096

Courtesy of SUBARU OF AMERICA, INC.
