Brake actuator ASSY: Installation

1. With 4 bolts, install the brake actuator ASSY W/bracket to the body.
   CAUTION: Do not bend or damage the brake tubes.

   Standard value: T=33N.m {338kgf.cm} {24.3ft.lbf}

2. Connect the vehicle wiring harness to the brake actuator ASSY.
3. Rotate the lock lever for the vehicle wiring harness downward, and engage the claw of the vehicle wiring harness connector to lock it.
   CAUTION:

   • Before connecting the vehicle wiring harness, make sure there is no foreign matter is on the connector surface.
   • After connecting the vehicle wiring harness, make sure that the lock lever is securely locked.

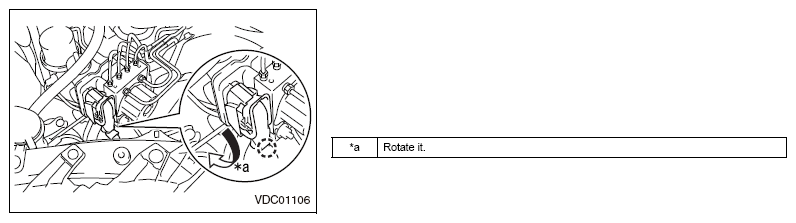

     Fig 1: Installing Brake Actuator Assembly

     Courtesy of SUBARU OF AMERICA, INC.
4. Using a flare-nut wrench, connect 2 brake tubes to the brake actuator ASSY.

   Standard value: T=19N.m {194kgf.cm} {14.0ft.lbf}

   Fig 2: Locating Brake Tubes Flare Nut

   Courtesy of SUBARU OF AMERICA, INC.
5. Using a flare-nut wrench, connect 4 brake tubes to the brake actuator ASSY.

   Standard value: T=15N.m {155kgf.cm} {11.1ft.lbf}

   Fig 3: Locating Brake Tubes

   Courtesy of SUBARU OF AMERICA, INC.
6. Attach the clamp to the wiring harness of the speed sensor FR LH.
7. Install the cooler pipe to the clamp.
8. Attach 2 harness clamps.

Standard value: T=120N.m {1224kgf.cm} {88.5ft.lbf}
