Exploded view
Exploded view

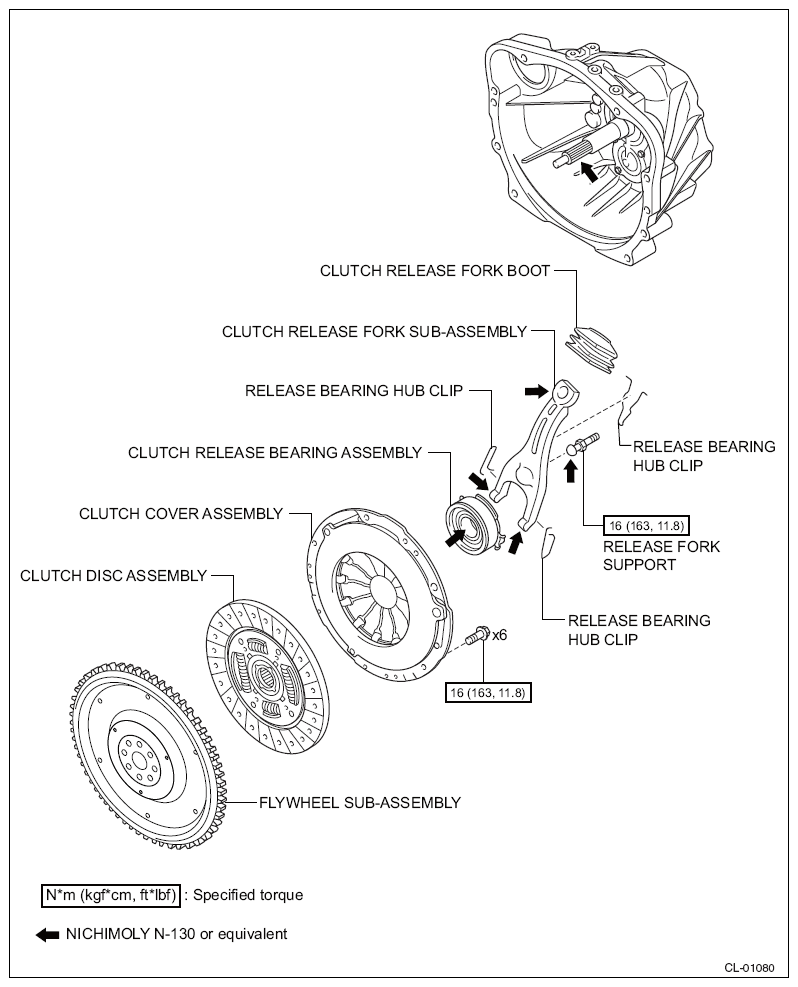

Fig 1: Exploded View Of Clutch
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
