Home >> Subaru >> 2017 >> BRZ Premium >> Repair and Diagnosis >> Steering >> Steering Column >> Steering lock system >> The steering lock cannot be released (cannot start the engine) (with ID code box) >> Circuit figure

Circuit figure

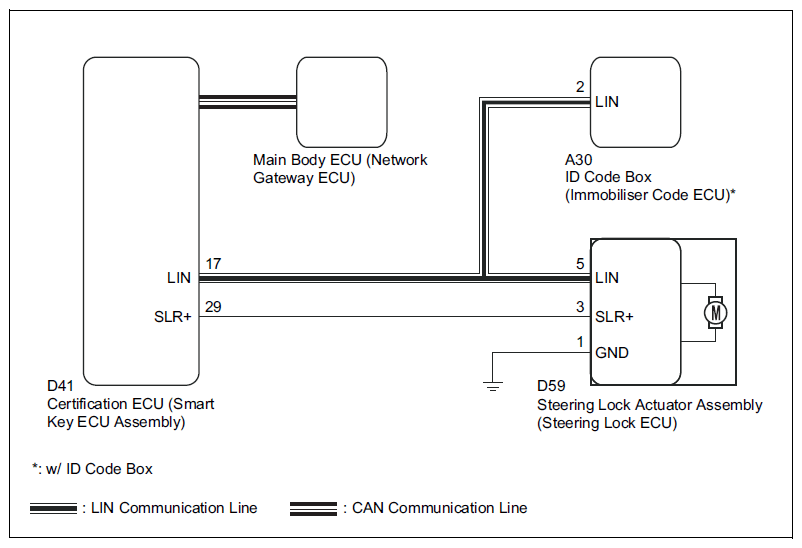

Fig 1: Main Body ECU (Network Gateway ECU) - Circuit Diagram
G11260931Courtesy of SUBARU OF AMERICA, INC.
