Front seat outer belt ASSY
>>
Exploded view
Exploded view

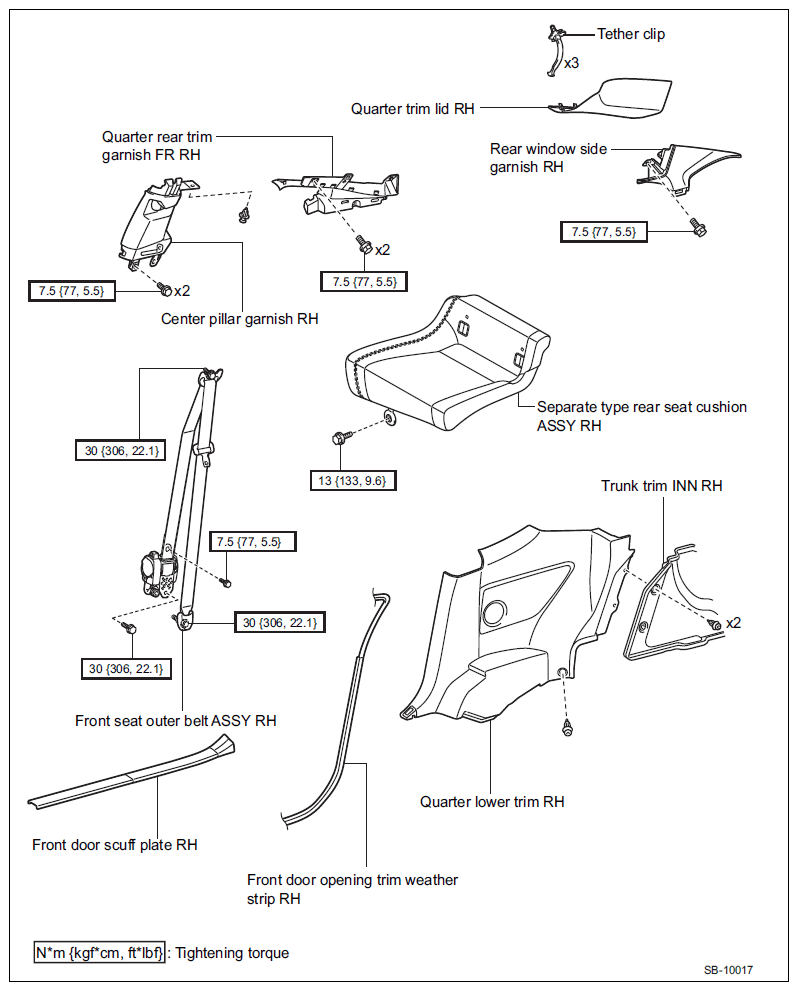

Fig 1: Exploded View Of Front Seat Outer Belt Assy With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
