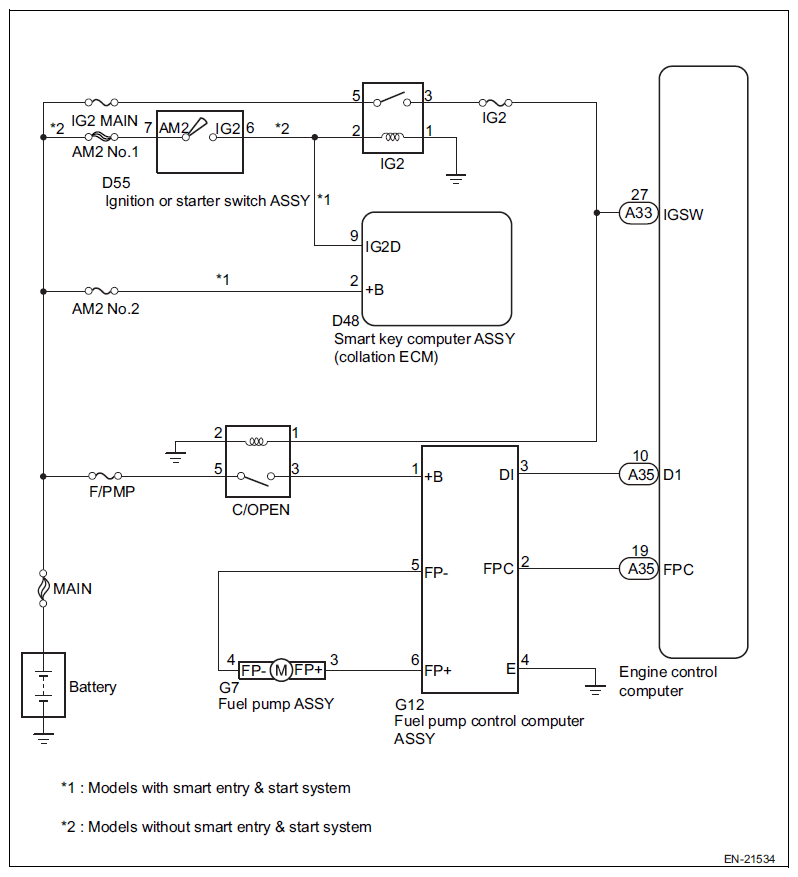

Home >> Subaru >> 2017 >> BRZ Premium >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (Diagnostics) (System & Circuit Tests) >> EFI system (FA20) >> Fuel pump control system >> Circuit figure
