Subaru
>>
2017
>>
BRZ Premium
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Interior Trim/Instrument Panel
>>
Instrument panel UPR
>>
Exploded view
Exploded view

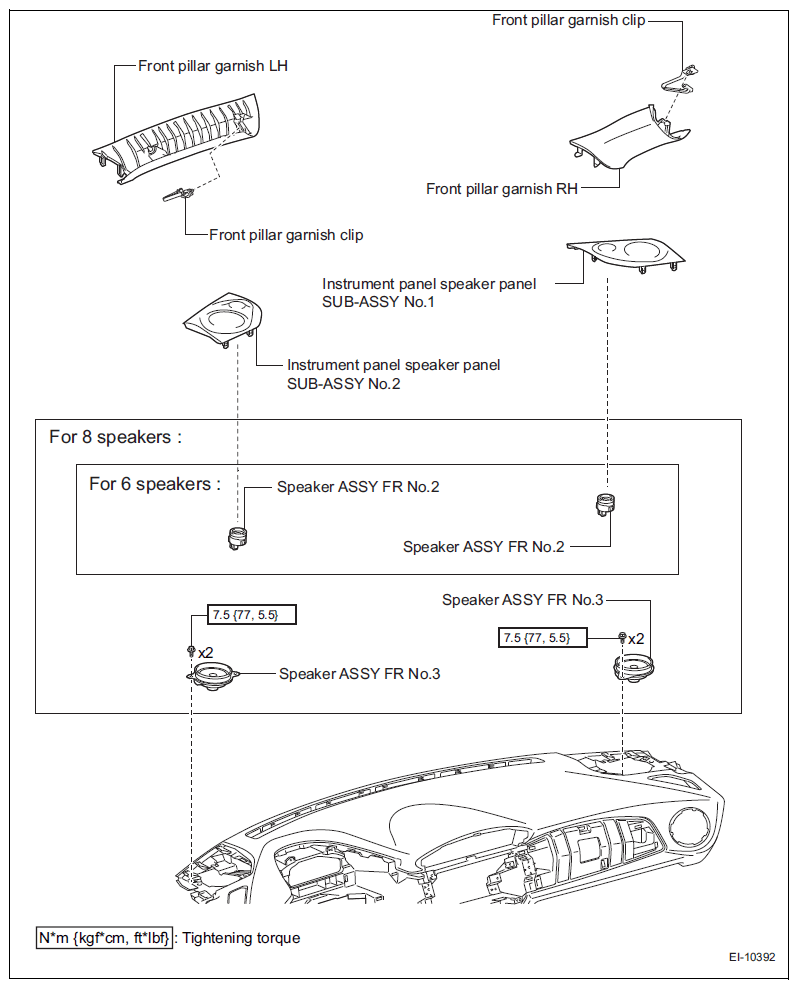

Fig 1: Exploded View Of Instrument Panel UPR With Torque Specification (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

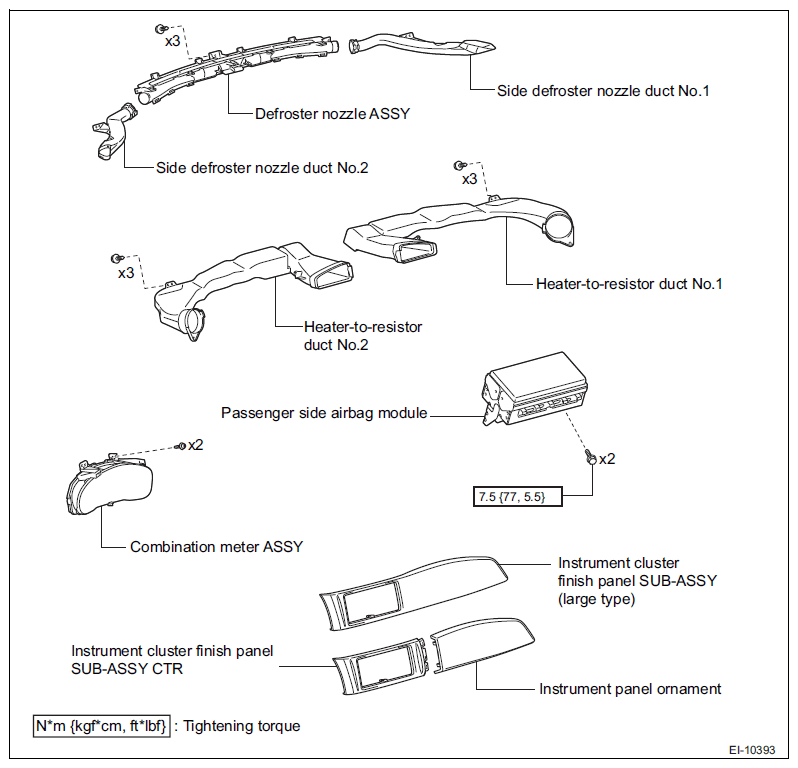

Fig 2: Exploded View Of Instrument Panel UPR With Torque Specification (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Exploded View Of Instrument Panel UPR With Torque Specification (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
