Instrument panel LWR
>>
Exploded view
Exploded view

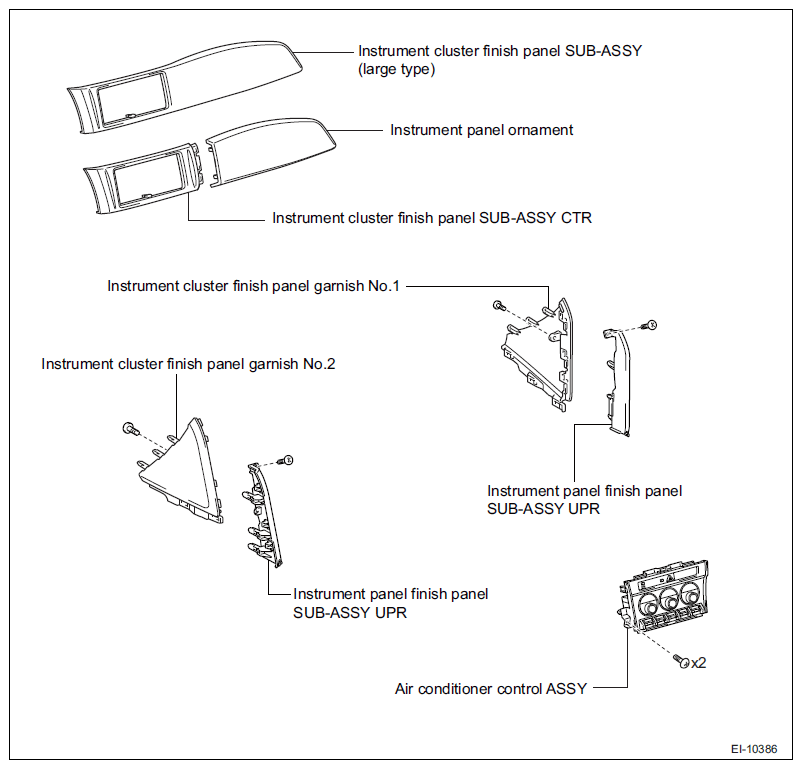

Fig 1: View Of Instrument Panel LWR (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

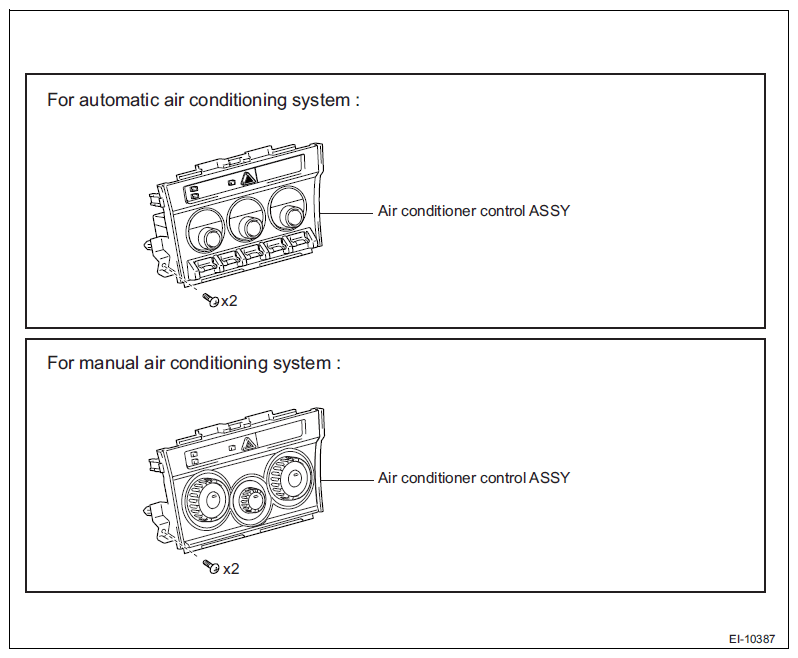

Fig 2: View Of Instrument Panel LWR (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Fig 3: View Of Instrument Panel LWR (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Fig 4: Instrument Panel LWR With Torque Specification (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
