Steering wheel: Disassembly

  1. Removal of the steering shake damper
    1. Undo the two screws to remove the steering shake damper from the steering wheel ASSY.
    Fig 1: Locating Steering Shake Damper Screws
    G11260977Courtesy of SUBARU OF AMERICA, INC.
  2. Removal of the steering wheel boss cover LWR
    1. Unhook the four tabs to remove the steering wheel boss cover LWR from the steering wheel ASSY.

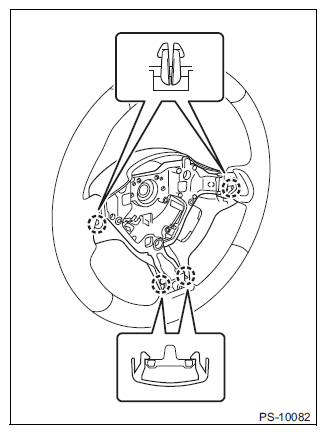

Fig 2: Removing Steering Wheel Boss Cover Tabs
G11260978Courtesy of SUBARU OF AMERICA, INC.
