Steering pad switch: Removal

Handling/working precautions
WARNING: As this maintenance procedure may have an effect on the SRS airbag system, be sure to check the SRS airbag system precautions before commencing work. (Refer to SRS airbag system )
Disconnection of the battery ground terminal
WARNING: As the airbag and pretensioner system is equipped with a backup power supply, if you start work within 60 seconds of disconnecting the battery ground terminal, the airbag may accidentally deploy.

CAUTION: To prevent damage to the moldings, completely wind down both the driver's and passenger's door windows.
Removal of the driver's airbag module (Refer to Driver side air bag module )
Removal of steering pad switch ASSY
1. Disconnect the connector from the spiral cable SUB-ASSY.

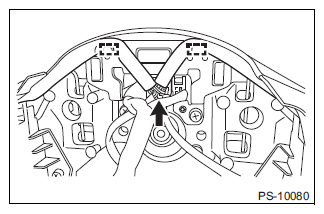

  Fig 1: Locating Spiral Cable SUB-ASSY Connector
  Courtesy of SUBARU OF AMERICA, INC.
2. Release the guide.
3. Remove 2 screws.
  Standard value: T=1.75N.m {18kgf.cm} {1.3ft.lbf}

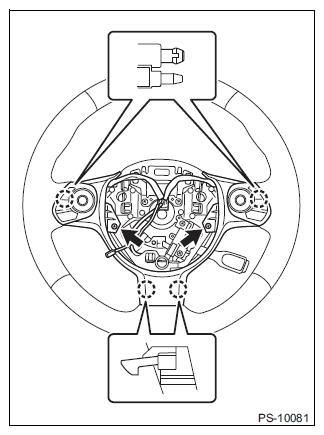

  Fig 2: Locating Steering Pad Switch ASSY Screws And Tabs
  Courtesy of SUBARU OF AMERICA, INC.
4. Release the 4 tabs and remove the steering pad switch ASSY.
