Circuit figure

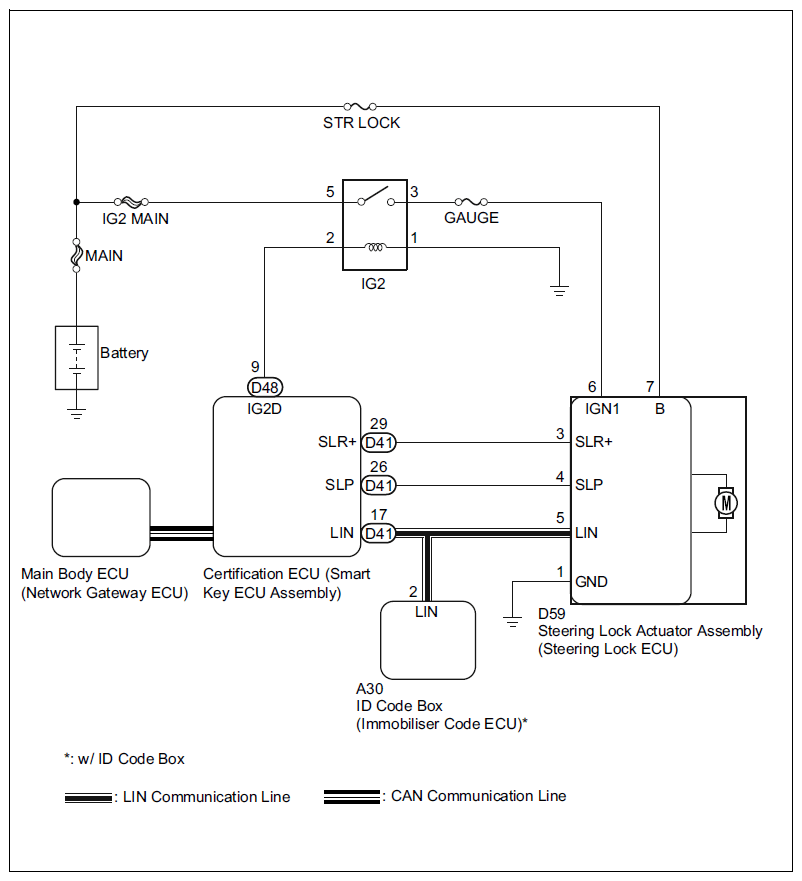

Fig 1: Steering Lock System - Circuit Diagram

G11260916

Courtesy of SUBARU OF AMERICA, INC.
