Steering column ASSY: Installation

  1. Confirm that the front tires are in the straight-ahead position.
  2. Install the steering column ASSY.
    1. Install the steering column ASSY into the instrument panel reinforcement ASSY with the two nuts and new bolts.

      Standard value: T=40N.m {408kgf.cm} {29.5ft.lbf}

      CAUTION: Be careful not to pinch the wiring harness between the body.
    2. Connect the two connectors to the power steering computer ASSY.

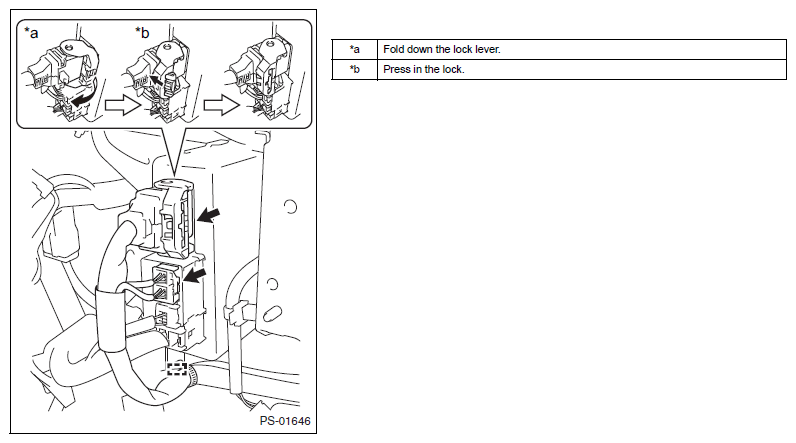

      Fig 1: Connecting Connectors To Power Steering Computer ASSY
      G11260965Courtesy of SUBARU OF AMERICA, INC.
    3. Install the wiring harness clamp onto the power steering computer ASSY.
  3. Installation of the steering intermediate shaft ASSY No. 2
    1. Pass the steering intermediate shaft ASSY No. 2 through the hole in the body from the vehicle interior side.
    2. Line up the alignment marks and connect the steering intermediate shaft ASSY No. 2 to the steering gear ASSY.
      Fig 2: Locating Steering Intermediate Shaft ASSY Bolt
      G11260966Courtesy of SUBARU OF AMERICA, INC.
    3. Attach a new bolt.

      Standard value: T=35N.m {357kgf.cm} {26ft.lbf}

    4. Line up the alignment marks and connect the steering intermediate shaft ASSY No. 2 to the steering column ASSY.
      Fig 3: Locating Steering Intermediate Shaft ASSY Bolt
      G11260967Courtesy of SUBARU OF AMERICA, INC.
    5. Attach a new bolt.

      Standard value: T=35N.m {357kgf.cm} {25.8ft.lbf}

    6. Engage the four tabs and install the dust shield to the vehicle.
  4. Installation of the turn signal switch ASSY W/Steering roll connector
    1. Install the turn signal switch ASSY W/Steering roll connector onto the steering column ASSY when the clamp is loose.
    2. Engage the tabs on the turn signal switch ASSY W/Steering roll connector with the steering column ASSY and tighten the clamp.
    3. Connect each connector to the turn signal switch ASSY W/Steering roll connector.
  5. Installation of the steering column cover UPR
    1. Engage the two tabs and install the steering column cover UPR.
  6. Installation of the steering column cover LWR
    1. Engage the six tabs and install the steering column cover LWR.
    2. Install the two screws into the steering column cover LWR.
  7. Installation of the steering column cover support (with smart entry)
    1. Engage the 4 tabs and install the steering column cover support.
  8. Installation of the instrument panel meter ornament UPR (Refer to Installation )
  9. Installation of the meter hood SUB-ASSY (Refer to Installation )
  10. Installation of instrument cluster finish panel SUB-ASSY (large type) (Refer to Installation )
  11. Installation of instrument cluster finish panel SUB-ASSY CTR (Refer to Installation )
  12. Installation of the instrument panel ornament (Refer to Installation )
  13. Steering roll connector centering (Refer to Inspection )
  14. Installation of the instrument panel under cover SUB-ASSY No. 1 (Refer to Installation )
  15. Installation of the instrument side panel RH (Refer to Installation )
  16. Installation of the steering wheel ASSY (Refer to Assembly )
  17. Connection of the battery ground terminal

    Standard value: T=6.0N.m {61kgf.cm} {4.43ft.lbf}

  18. Settings when removing/installing battery terminals (Refer to Working precautions and notes )
  19. Settings during parts replacement and installation/removal (Refer to Work support )
  20. Inspection of airbag warning light (Refer to Wiring diagram )
  21. VDC sensor mid point setting (Refer to Work support )
