Circuit figure

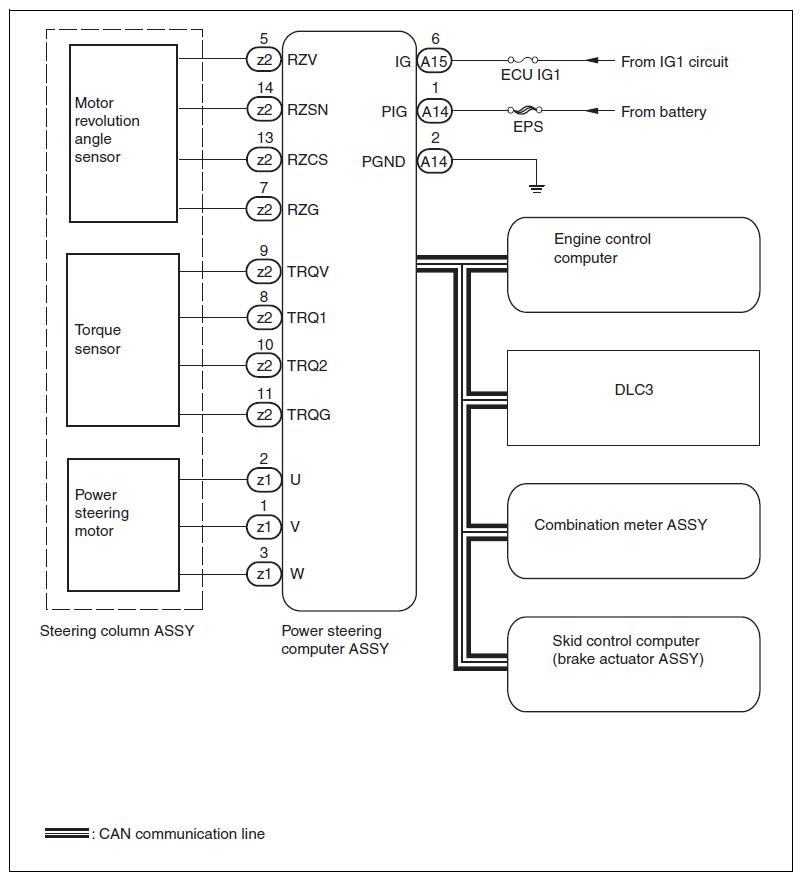

Fig 1: Power Steering System - Circuit Diagram

G11260892

Courtesy of SUBARU OF AMERICA, INC.
