Intake manifold ASSY (FA20)
>>
Exploded view
Exploded view

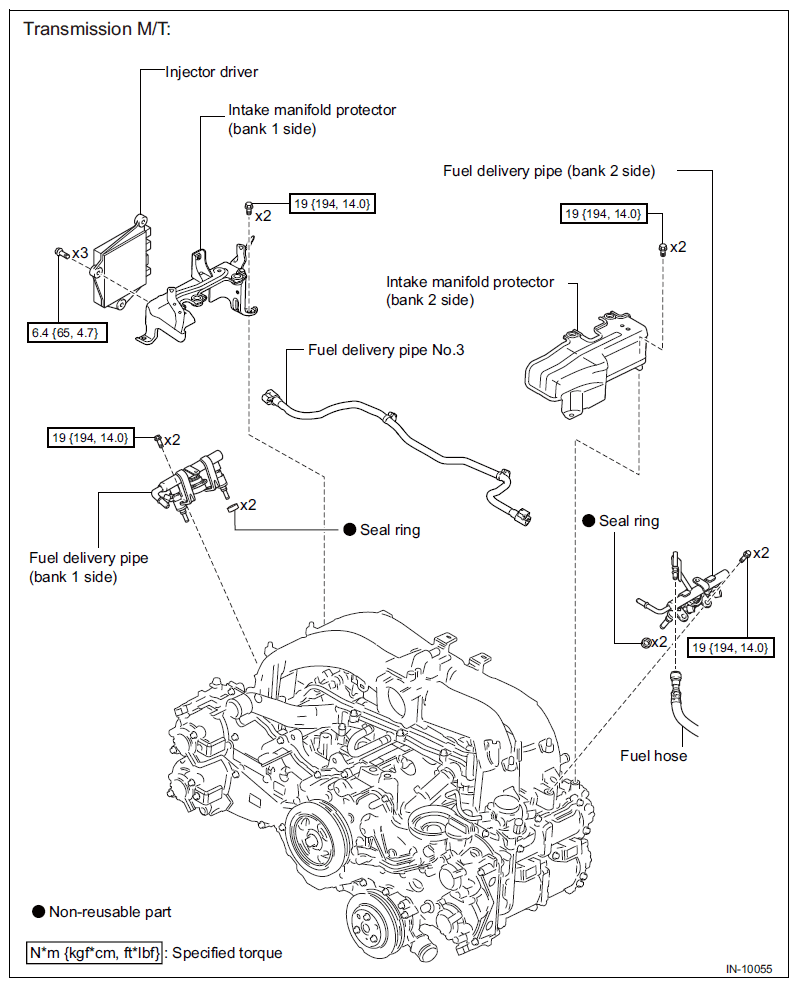

Fig 1: Exploded View Of Intake Manifold Assy (FA20; 1 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

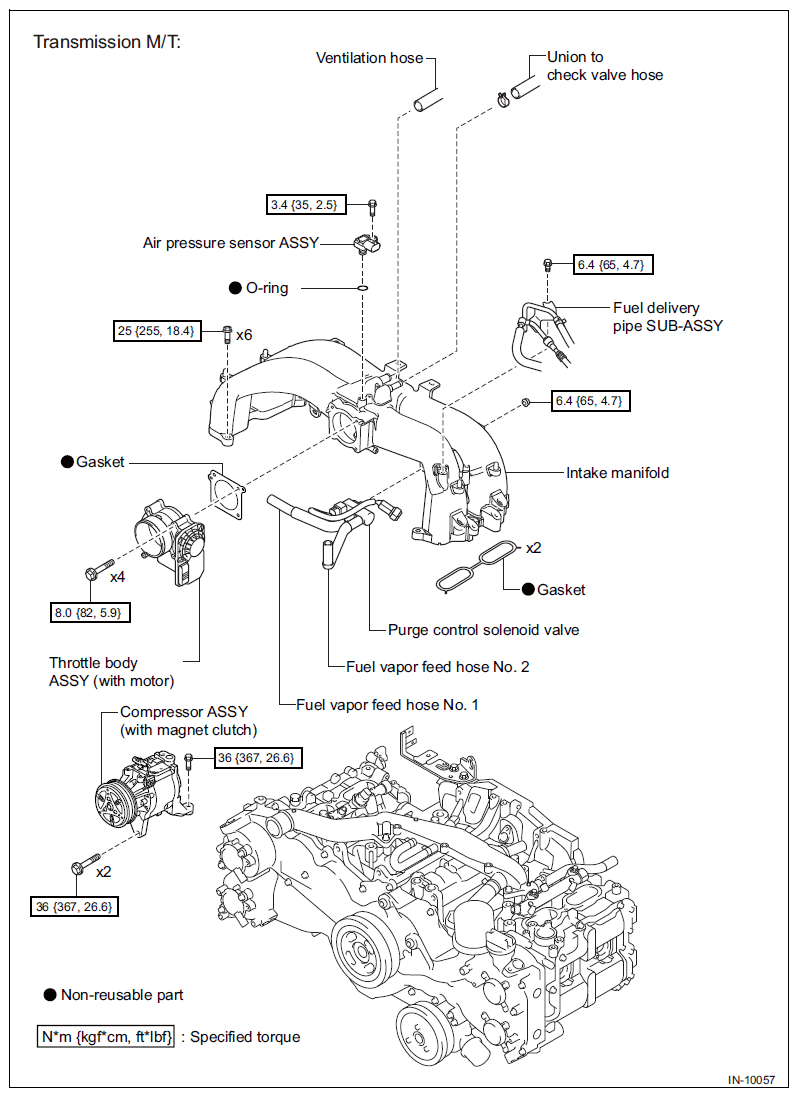

Fig 2: Exploded View Of Intake Manifold Assy (FA20; 2 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

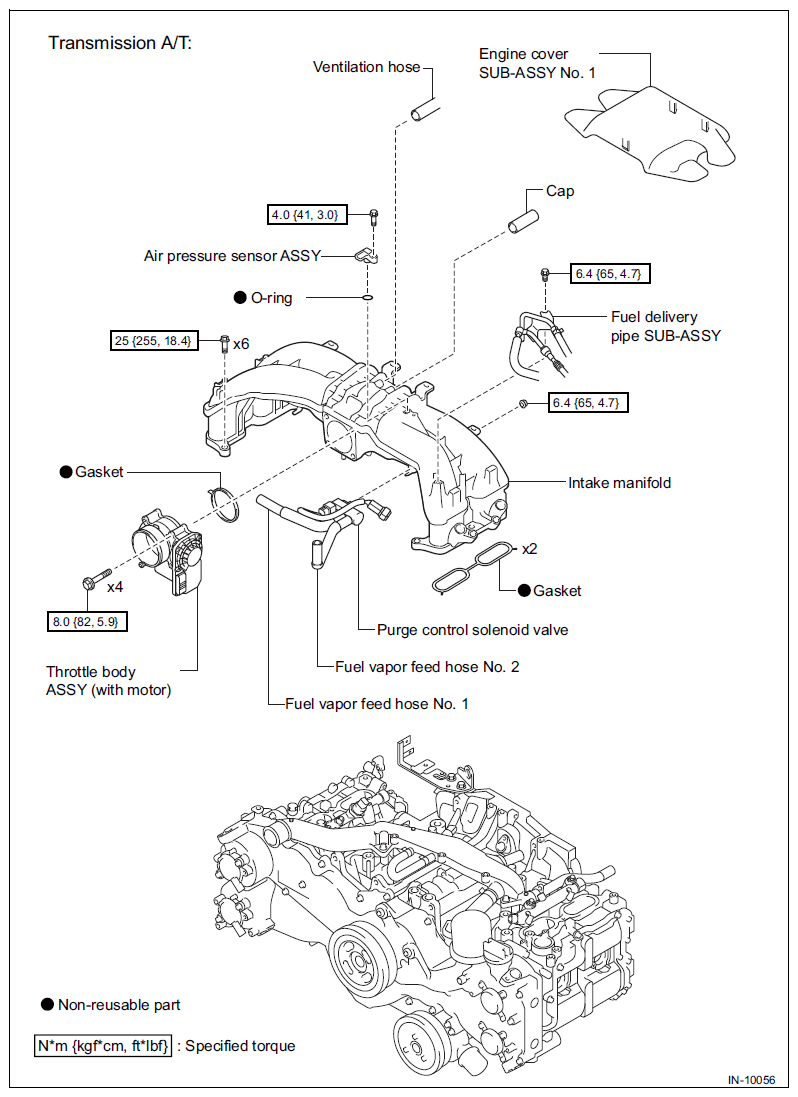

Fig 3: Exploded View Of Intake Manifold Assy (FA20; 3 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

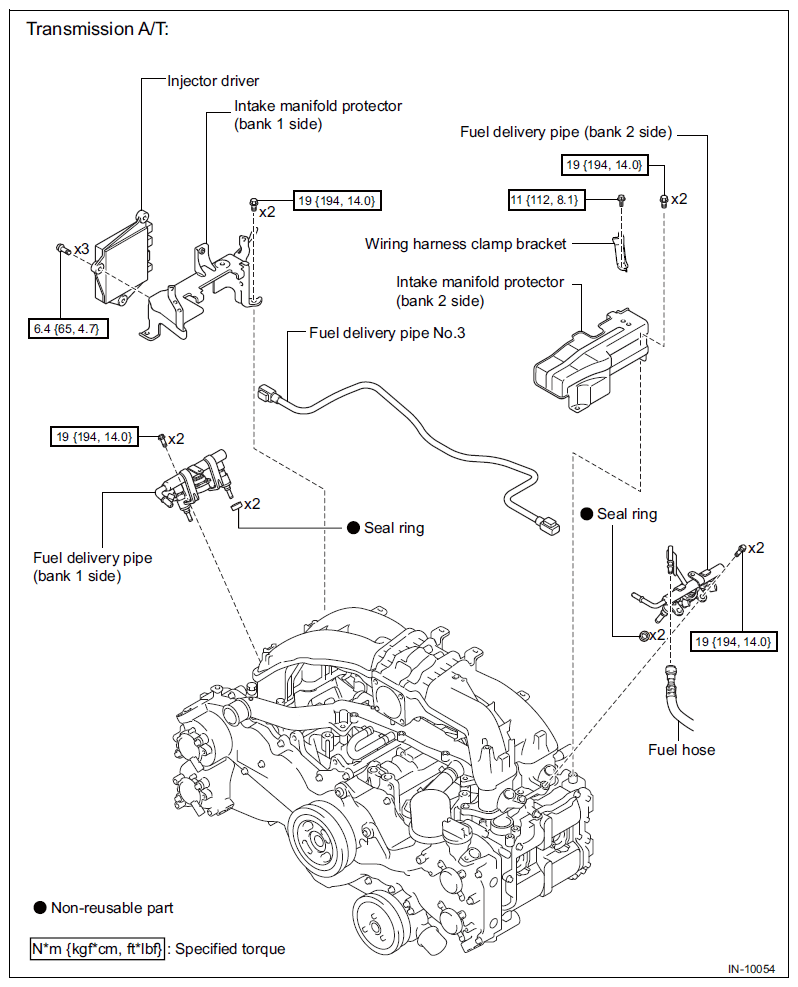

Fig 4: Exploded View Of Intake Manifold Assy (FA20; 4 Of 5)
Courtesy of SUBARU OF AMERICA, INC.
Fig 5: Exploded View Of Intake Manifold Assy (FA20; 5 Of 5)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
