Alternator (FA20): Disassembly

Removal of IC regulator
1. Remove the cover.

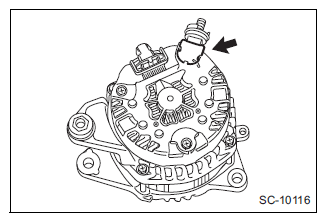

  Fig 1: Locating IC Regulator Cover
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the nut and remove the terminal B.

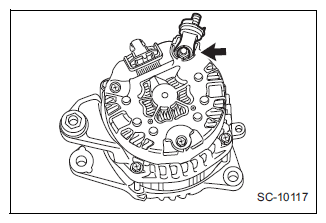

  Fig 2: Locating IC Regulator Nut
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the rear cover.

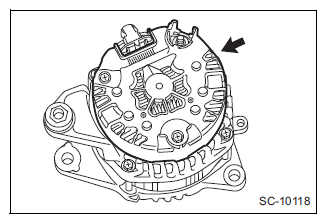

  Fig 3: Locating Alternator ASSY Rear Cover
  Courtesy of SUBARU OF AMERICA, INC.
4. Remove the 2 bolts, and remove the brush ASSY.

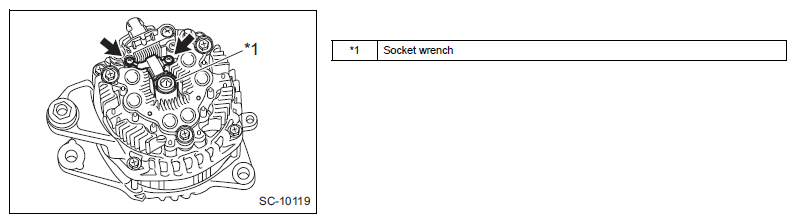

  Fig 4: Locating Brush Assy Bolts
  Courtesy of SUBARU OF AMERICA, INC.

  NOTE: To avid the damage to the slip ring, place an appropriate tool such as a socket wrench of the correct size between the brush and slip ring.
5. Remove the 3 bolts, and remove the IC regulator.

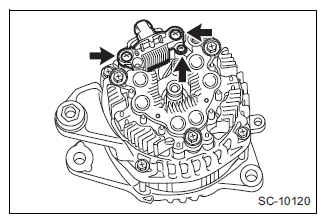

Fig 5: Locating IC Regulator Bolts

G11261090

Courtesy of SUBARU OF AMERICA, INC.
