Alternator (FA20): Assembly

Install the IC regulator in place with the 3 bolts.
Standard value: Bolt A

T=2.0N.m {20kgf.cm}

Bolt B

T=3.9N.m {40kgf.cm}

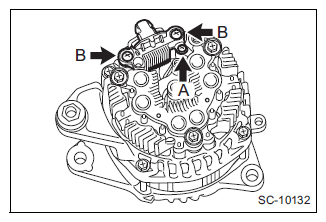

Fig 1: Locating IC Regulator Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the brush ASSY in place with the 2 bolts.
Standard value: T=2.0N.m {20kgf.cm}

CAUTION: Push the brush into the brush holder while holding the brush with fingers or a socket wrench of the correct size to install the brush ASSY in place.
Install the rear cover.
Install the terminal B with the nut.
Standard value: T=8.9N.m {90kgf.cm}
Install the cover.
