ECM terminal arrangement

  1. Instrument panel junction block ASSY, main body ECM (Network gateway computer).

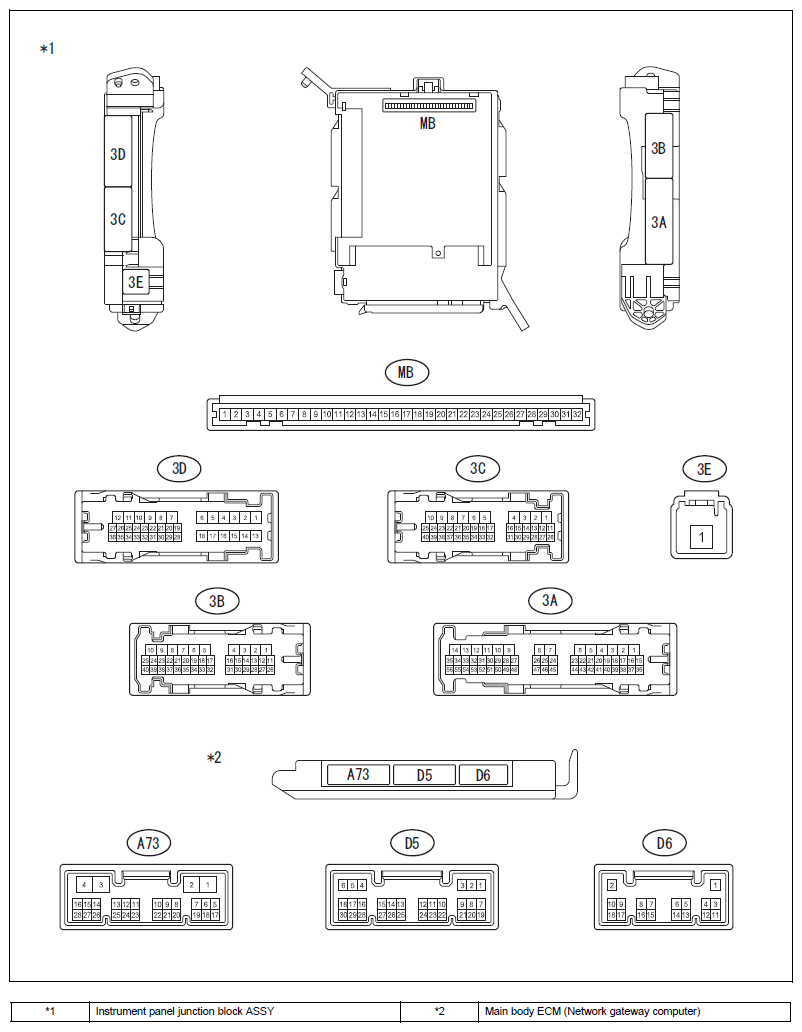

Fig 1: Identifying ECM Connectors Terminals
G11261097Courtesy of SUBARU OF AMERICA, INC.
  1. Measure the voltage and resistance between terminals.
    NOTE: This inspection is performed from the back side of the connector with the connector in a connected state.
    Terminal No. (Terminal code) Input/Output Item Measuring condition Criteria
    3A-15 ←→chassis ground Input Voltage IG ON 11 to 14V
    3A-20 ←→chassis ground Input Voltage IG ON 11 to 14V
    3A-27 ←→chassis ground Input Voltage Always 11 to 14V
    3C-19 ←→chassis ground Input Voltage Always 11 to 14V
    3E-1 ←→chassis ground Input Voltage Always 11 to 14V
    3A-12 ←→chassis ground - Resistance Always Less than 1 Ω
    3A-13 ←→chassis ground - Resistance Always Less than 1 Ω
    3B-18 ←→chassis ground - Resistance Always Less than 1 Ω
    D6-1 (GND) ←→chassis ground - Resistance Always Less than 1 Ω
    A73-4 (GND) ←→chassis ground - Resistance Always Less than 1 Ω
  2. Remove the main body ECM (network gateway computer) from the instrument panel junction block ASSY.
  3. Measure the voltage and resistance between terminals.
    Terminal No. (Terminal code) Input/Output Item Measuring condition Criteria
    MB-1 (BECU) ←→chassis ground Input Voltage Always 11 to 14V
    MB-8 (IG) ←→chassis ground Input Voltage IG ON 11 to 14V
    MB-9 (ACC) ←→chassis ground Input Voltage ACC ON 11 to 14V
    MB-32 (BMPX) ←→chassis ground Input Voltage Always 11 to 14V
    MB-11 (GND) ←→chassis ground - Resistance Always Less than 1 Ω
