Steering Wheel: Removal

CAUTION: Before performing service on the airbag module, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM" section. < Ref. to CAUTION , General Description. >

Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. < Ref. to BATTERY , NOTE, Note. >
NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
Set the tire to the straight-ahead position.
Remove the driver's airbag module. < Ref. to REMOVAL , Driver's Airbag Module. >
Remove the steering wheel.
CAUTION:
- Always use the steering wheel puller for removal to avoid deforming the steering wheel.
- If the steering wheel has been removed, make sure that the steering roll connector is not turned from the original position.
1. Disconnect the connector and remove the nut.
2. Put alignment marks and remove the steering wheel.
  Preparation tool:

  Steering wheel puller

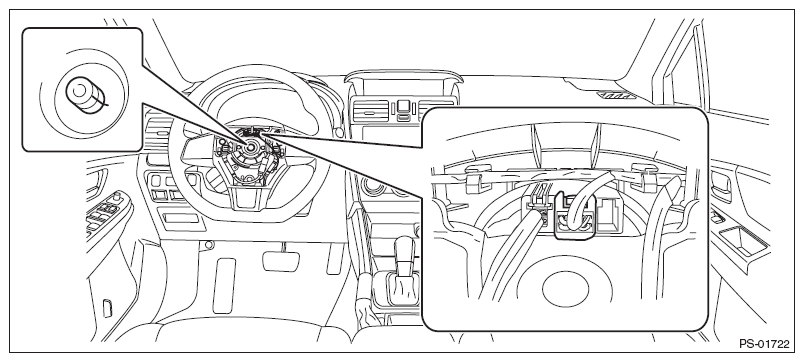

  Fig 1: Identifying Steering Wheel Alignment Marks
  Courtesy of SUBARU OF AMERICA, INC.
