Steering Gearbox: Adjustment

  1. Adjust the front toe.

    < Ref. to FRONT WHEEL TOE-IN , INSPECTION, Wheel Alignment. >

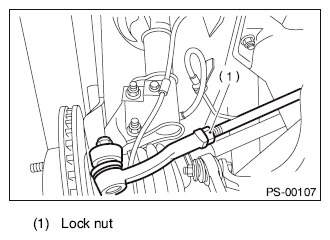

    Fig 1: Identifying Lock Nut
    G10298044Courtesy of SUBARU OF AMERICA, INC.
  2. Check the steering angle of the wheels.
    STEERING ANGLE SPECIFICATION

    Inner wheel Outer wheel
    36.3°±1.5° 32.0°±1.5°
  3. If the steering wheel spokes are not horizontal when wheels are set in the straight ahead position, or error is more than 5° on the periphery of the steering wheel, correctly re-install the steering wheel.
    Fig 2: Identifying Steering Wheel Angle
    G10298045Courtesy of SUBARU OF AMERICA, INC.
  4. If the steering wheel spokes are not horizontal with vehicle set in the straight ahead position after this adjustment, correct it by turning the right and left tie-rods in the opposite direction from each other by the same angle.
