Front Sub Sensor: Removal

CAUTION: Refer to "CAUTION" of "General Description" before handling the airbag system components. < Ref. to CAUTION , General Description. >
  1. Turn the ignition switch to OFF.
  2. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. < Ref. to BATTERY , NOTE, Note. >
    NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
  3. Remove the bumper face - front and the bumper beam COMPL - front. < Ref. to REMOVAL , Front Bumper. >
  4. Remove the bolt, and then detach the front sub sensor. < Ref. to FRONT SUB SENSOR , PROCEDURE, Airbag Connector. >

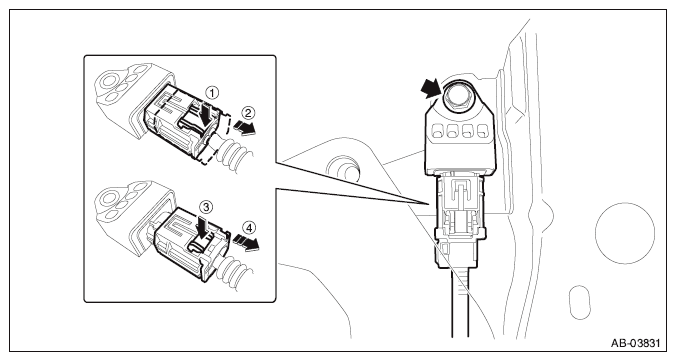

    Fig 1: Removing Front Sub Sensor
    G10298341Courtesy of SUBARU OF AMERICA, INC.
