Radiator Main Fan and Fan Motor: Installation

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

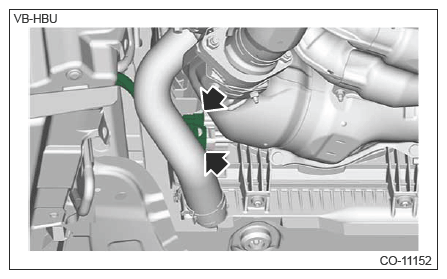

Install the radiator main fan and fan motor.
CAUTION:
Confirm that the radiator hose is securely connected.

Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

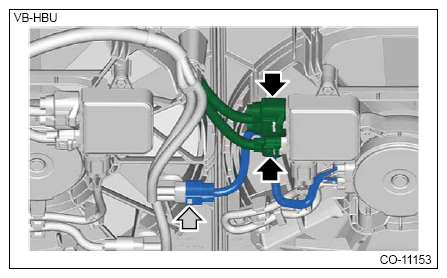

Connect the fan motor (sub) connector.
Connect the connector to radiator fan control module (sub).

Courtesy of SUBARU OF AMERICA, INC.
Connect the connector of the bulkhead wiring harness.

Courtesy of SUBARU OF AMERICA, INC.
Install the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>INSTALLATION .
Install the reservoir tank. Ref. to COOLING (H4DOTC)> RESERVOIR TANK>INSTALLATION .

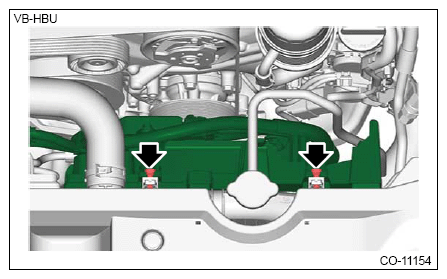

Install the V-belt cover.
NOTE:
- Check the grommet for peel-off or disengagement.
- Be careful not to deform the bracket during installation.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
