Stator Coil

  1. Inspect continuity between the stator coil lead wire terminals. If the resistance is 1 MΩ or more, replace the stator coil.

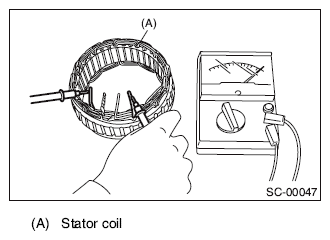

    Fig 1: Inspecting Continuity Between Stator Coil Lead Wire Terminals
    G10290771Courtesy of SUBARU OF AMERICA, INC.
  2. Inspect the continuity between the stator coil stator core and lead wire terminals. If the resistance is 1 Ω or less, replace the stator coil.
    Fig 2: Inspecting Continuity Between Stator Coil Stator Core And Lead Wire Terminals
    G05954429Courtesy of SUBARU OF AMERICA, INC.
