Front Exhaust Pipe: Disassembly

  1. Remove the exhaust manifold RH upper cover.
  2. Remove the exhaust manifold RH and the exhaust manifold LH from the front exhaust pipe.

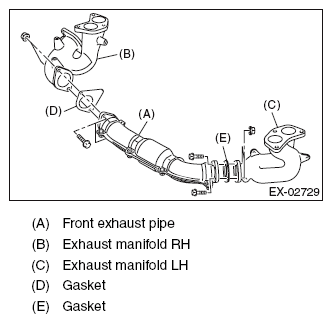

    Fig 1: Identifying Exhaust Manifold And Gaskets
    G10290529Courtesy of SUBARU OF AMERICA, INC.
