Center Exhaust Pipe: Disassembly

  1. Remove the rear oxygen sensor from the center exhaust pipe (rear). < Ref. to REMOVAL , Rear Oxygen Sensor. >
  2. Remove the center exhaust pipe upper cover.
  3. Remove the center exhaust pipe (rear) from the center exhaust pipe (front).

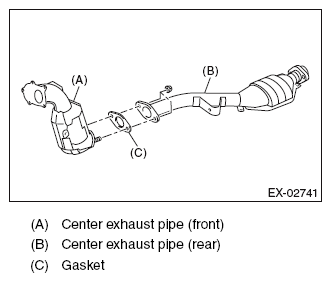

    Fig 1: Identifying Front And Rear Center Exhaust Pipes
    G10290551Courtesy of SUBARU OF AMERICA, INC.
