Cruise Control Command Switch: Inspection

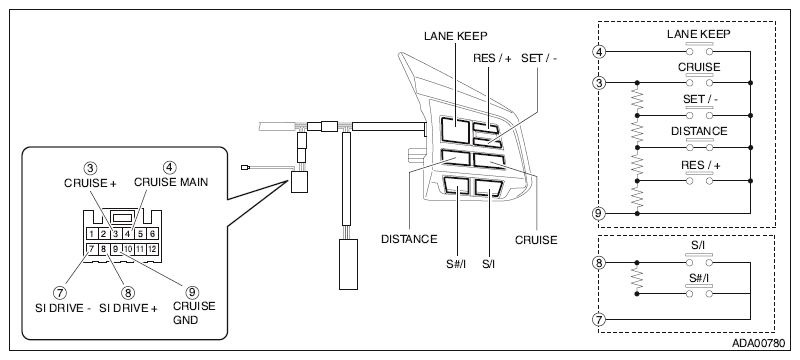

- Measure the resistance between connector terminals.
Preparation tool:
Circuit tester
Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Inspection conditions Standard 3 - 9 CRUISE SET/- DISTANCE RES/+ All OFF Approx. 4020 Ω CRUISE ON Less than 1 Ω SET/- ON Approx. 250 Ω DISTANCE ON Approx. 680 Ω RES/+ ON Approx. 1470 Ω 4 - 9 LANE KEEP OFF 1 MΩ or more ON Less than 1 Ω 8 - 7 S/I S#/l OFF 1 MΩ or more S/I ON Less than 1 Ω S#/I ON Approx. 1800 Ω - Replace the EyeSight steering switch if the inspection result is not within the standard.
