Camera All Adjustment Mode (Replacement/Removal): Notes

Perform this procedure when the stereo camera is replaced or re-adjustment is necessary (when stereo camera malfunctioning, when stereo camera reinstalled, when windshield glass replaced).

CAUTION:

When the stereo camera is replaced, be sure to perform the «Clear adjustment value» first. When {Clear adjustment value} was skipped, restart the procedure from {Clear adjustment value} again. < Ref. to ADJUSTMENT VALUE CLEAR , PROCEDURE, Camera Adjustment, Inspection. >
Perform the camera adjustment and inspection at curb weight without passengers.
When the camera all adjustment mode is performed, the procedures must be completed correctly to the end. Otherwise, the warning is displayed on the meter LCD when the vehicle moves.

From the work support item list, select «Camera all adjustment mode (replacement/removal)».
When «Make the following adjustment/inspection. Please push OK if ready.» is displayed, if preparation is ready, select «OK».
When «In process...» is displayed, wait until inspection finishes.
When the accuracy rate inspection is finished correctly, and «Accuracy rate 00% OK!» is displayed, select «OK» to go to step 9).
When «Distance inspection NG!» is displayed, refer to the NOTE below.

Fig 1: Distance Inspection NG Block Diagram
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Distance check and adjustment of RANDOM CHART < Ref. to PREPARATIONS , PROCEDURE, Camera Adjustment, Inspection. >
When «Perform distance correction.» is displayed, select «OK». When the distance correction is finished correctly, and «Distance correction OK!» is displayed, select «OK» and proceed to the accuracy rate inspection.
When «Perform accuracy rate inspection.» is displayed, select «OK». When the accuracy rate inspection is finished correctly, and «Accuracy rate ◦◦% OK!» is displayed, select «OK» to go to next.

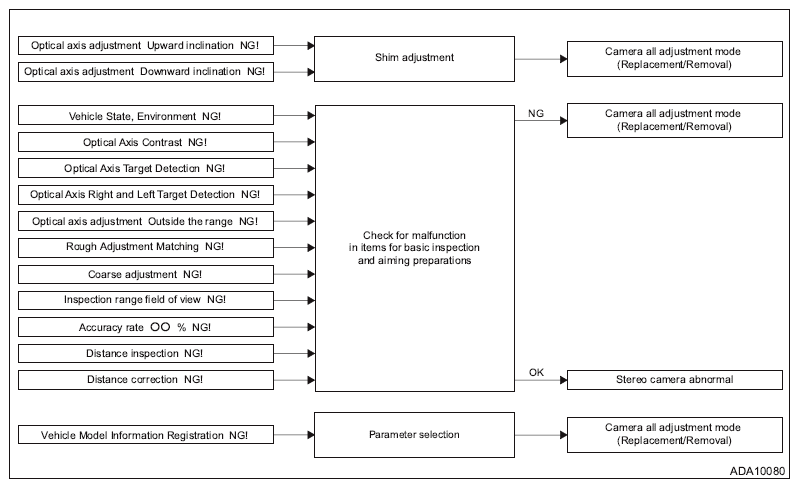

When «◦◦ NG!» is displayed during adjustment, refer to the NOTE below.

Fig 2: Accuracy Rate Inspection Block Diagram
Courtesy of SUBARU OF AMERICA, INC.
